GBT1854-93 cast iron single arrangement suction stop box valves

GBT1854-93 cast iron single arrangement suction stop box valves

Quantity: 0 Pieces
Size: DN50
Pressure: 1.0 MPa
Body Material: Cast Iron
Type: R and RS
  1. Applicable medium: Sea water, Fresh water.

  2. Materials of main Parts

(1). Body: Gray Cast Iron;

(2). Cover:  Gray Cast Iron;

(3). Disc: Cast Tin Bronze;

(4). Sea: Aluminum Bronze;

(5). Stem: Aluminum Bronze

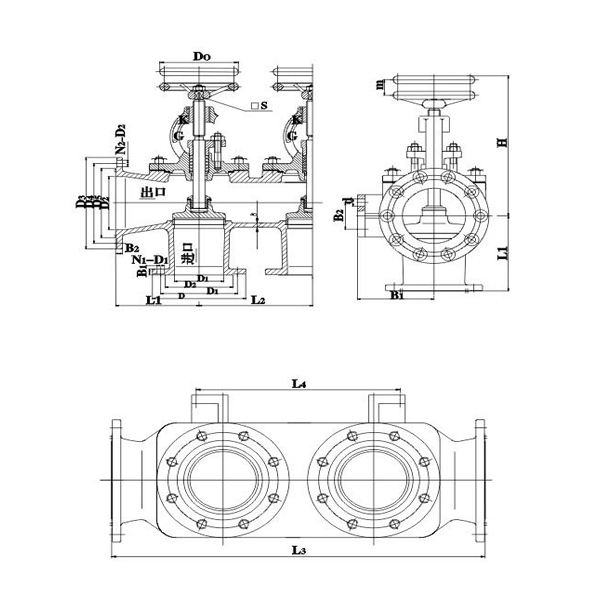

   3. Dimensions

PN

DN1

DN2

L1

L2

L3

L4

H

B1

B2

d

t

D

D1

D2

b1

n1-d1

D3

D4

D5

b2

n1-d2

Th.

D

S

m

kg

1.0

50

65

120

180

420

230

259

100

50

15

8

135

103

84

16

6-15

155

123

105

15

6-15

M14

140

12

15

25.2
