| Quantity: 0 Pieces |
| Size: DN40 |
| Pressure: 2.5 MPa |
| Body Material: Cast Steel |
| Type: A and AS |
Available medium: Steam, high lukewarm water, high temperature oil.
DN: 15 ~ 150
Materials of main Parts:
(1). Body: Cast Steel;
(2). Cover: Cast Steel;
(3). Disc: Highquality carbon steel;
(4). Corrugated pipe: Stainless Steel;
(5). Stem: Stainless Steel

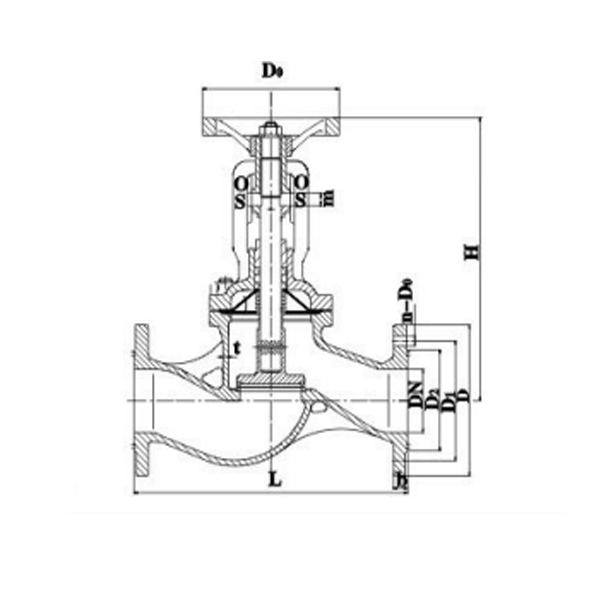

4. Dimensions
DN | L | H | t | D | D1 | D2 | Dₒ | b | n | Th | Dₒ | m | kg |
40 | 200 | 242 | 7 | 125 | 93 | 74 | 15 | 13 | 6 | M14 | 120 | 11 | 9.96 |
