| Quantity: 0 Pieces |
| Size: DN50 |
| Pressure: 0.1 MPa |
| Body Material: Cast Steel, Cast Tin Bronze |
| Type: BS |
Applicable medium: Sea water, Fresh water, Sewage.
Materials of Main Parts:
(1). Body: Cast Steel, Cast Tin Bronze;
(2). Cover: Cast Steel, Cast Tin Bronze;
(3). Disc: Aluminum Bronze;
(4). Plate Material Tin brass
3. Dimensions
DN | H | H1 | H2 | H3 | L | L1 | L2 | thickness | D | D1 | D2 | b | dₒ | n | Th. | Dₒ | S | m | kg |
50 | 210 | 170 | 360 | 327 | 135 | 90 | 100 | 7.5 | 135 | 103 | 84 | 13 | 15 | 6 | M12 | 80 | 11 | 40 | 13 |

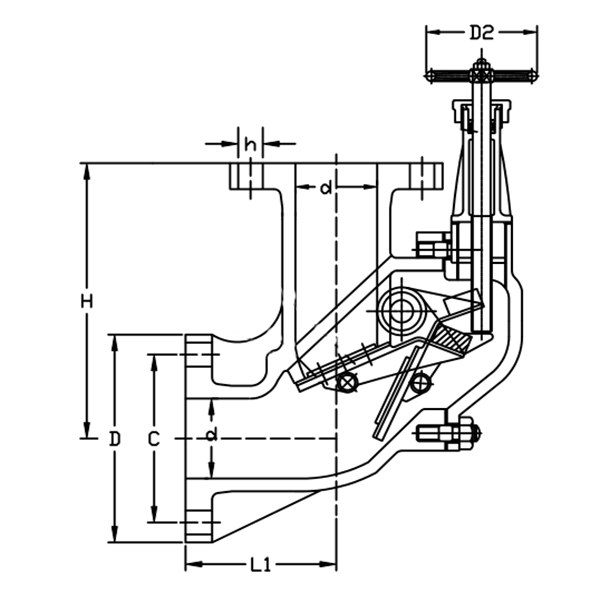

4. Drawing
