CBT3819 -1999 Wafer Type Check Valve
  • CBT3819 -1999 Wafer Type Check Valve
CBT3819 -1999 Wafer Type Check Valve

CBT3819 -1999 Wafer Type Check Valve

Quantity: 0 Pieces
Size: DN50
Pressure: 0.6 MPa
Body Material: Bronze
Contact Now
Download Product Catalog

Product Description

Send your message to this supplier

  1. Available medium: Fresh water, Sea water.

  2. Materials of main Parts:

(1). Body: Bronze;

(2). Disc: Bronze

  3. Dimensions

DN

L

A

B

kg

50

19

30

108

1.0

JSHD-02 Buttrefly Check Valve.jpg

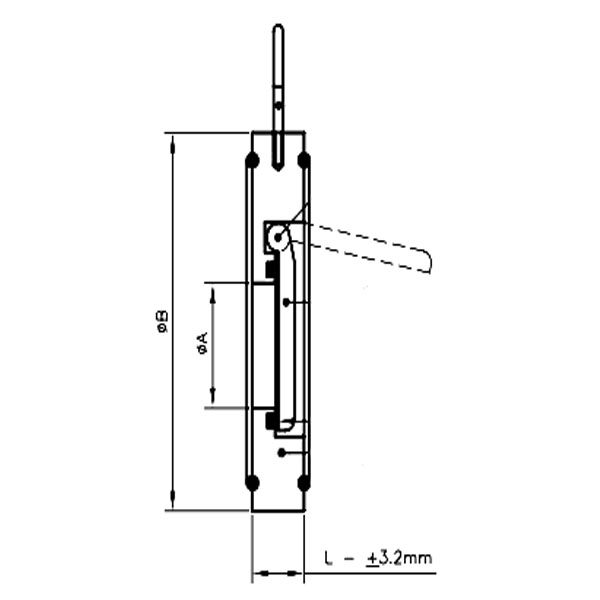

   4. Drawing

CBT3819 -1999 Wafer Type Check Valve.jpg
