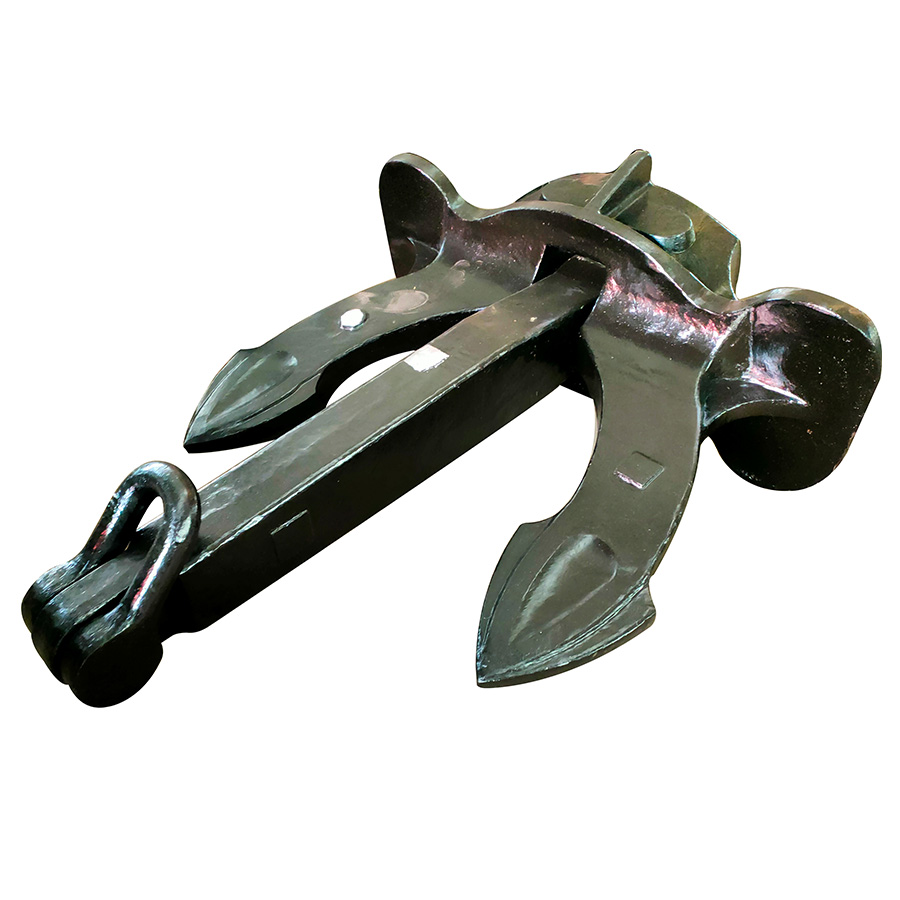

Type C Hall Anchor 360kgs
Type C Hall Anchor 360kgs

Type C Hall Anchor 360kgs

Quantity: 0 pieces
Nominal weight: 360kgs
Material: ZG200-400C
Holding power: Normal holding power
Surface treatment: Bituminous paint

Type C Hall Anchor 360kgs

Type C Hall Anchor 360kgs 1.jpg

Drawings and Parameters of Type C Hall Anchor 360kgs:

Type C Hall Anchor 360kgs 2.JPG

Nominal

Weight
(KG)

Size(mm)

Anchor

Shackle

(GB/T 547)

H

h

h1

L

L1

B

B1

H1

I

J

360

898

630

138

898

630

347

412

175

136

40

a9
