Marine Butterfly Valve

Marine Butterfly Valve

Quantity: 1 Pieces
Size: DN80
Pressure: 1.0 MPa
Body Material: Bronze
Type: B
  1. Manufactured in accordance to JIS F7400.

  2. Flanges as per JIS B2220

  3. Pressure: PN10 and PN16

  4. Materials:

(1). Body: Ductile Iron / Cast;

(2). Seat: Rubber;

(3). Disc: SUS/Bronze;

(4). Stem: SUS

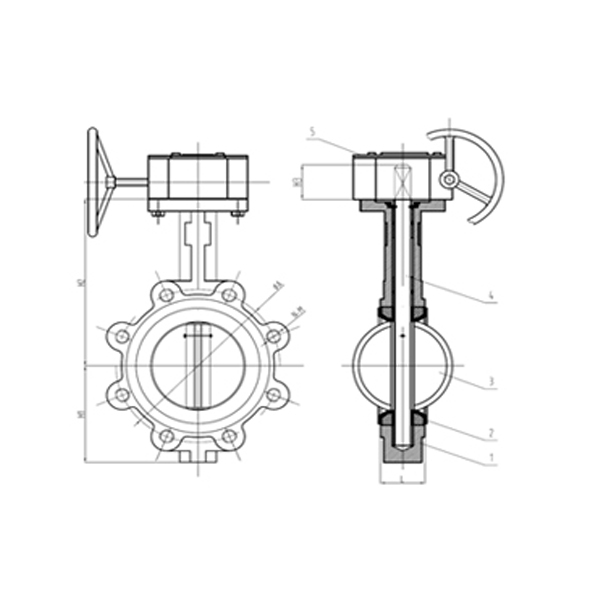

    5. Dimensions

MPa

DN

H

H1

L1

D

L

D

D1

D2

n

Th.

1.0

80

340

120

160

160

60

185

150

125

8

16
