| Quantity: 1 Pieces |
| Size: 100A |
| Pressure: 10K |
| Body Material: Cast Steel |
| Type: Straight |
Manufactured in accordance to JIS F7400.
Flange as per JIS B2220 - 10K
Series: F7311 (SDNR)
Materials:
(1). Body: Cast Steel;
(2). Seat: Stainless Steel;
(3). Disc: Stainless Steel;
(4). Stem: Stainless Steel

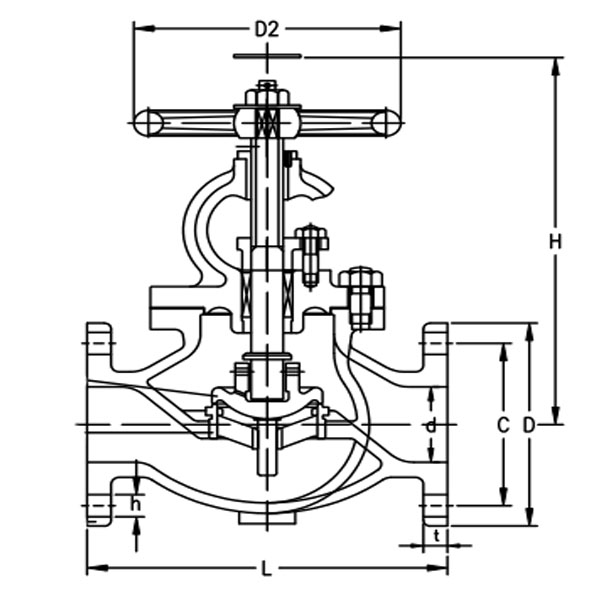

5. Dimensions
Size | L | D | C | No | h | t | H | D2 | kg |
100 | 350 | 225 | 185 | 8 | 23 | 24 | 440 | 280 | 62.3 |
