53 ON 150A  Air Vent-Head
  • 53 ON 150A  Air Vent-Head
53 ON 150A  Air Vent-Head

53 ON 150A Air Vent-Head

Quantity: 0 Pieces
Size: 150A
Pressure: 5K
53 ON
Type: Angle

ADVANTAGE:

  • The testing result of momentary tightness of the disc shows excelent in the condition (40 inclining).

  • The compact simples figure small area.

  • Light weight will help easy handing and have the advantage of lighting the ship.

  • Out clisc has been devised not to occur crack or demange in repeated reciprocating motion, it means out AIR VENT HEAD will not bring after servece problem in a longer actual seagoing.

  1. Manufactured in accordance to JIS F7400

  2. Flanges as per JIS B2220 5K

  3. Materials:

(1). Hex. Bolt: STS304;

(2). Top Cover: SS400;

(3). Asbestos Cushion: Asbestos;

(4). Body: FC200;

(5). Hex. Bolt:NBR;

(6) Rubber Ring: NBR;

(7). Filter: STS304;

(8). Screen Cover: SS400;

(9). Stainless Floit: STS316;

(10). Hex. Bolt: STS304;

(11). Rrubber Cushion: NBR;

(12). Cushion: STS304;

(13). Guide Bolt: STS304

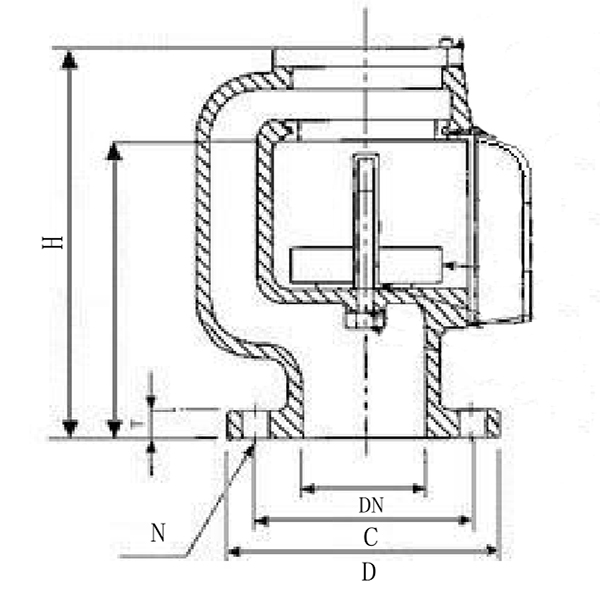

    4.Dimensions

Type

Size

D

C

H

No.

T

N

kg

D2

53 ON

5K

150

230

200

105

299

16

8

31

120

53-ON 150A Air Vent Head.jpg53-ON 150A Air Vent Head.jpg
