JIS F7375 J kind of flange stop valve
  • JIS F7375 J kind of flange stop valve
JIS F7375 J kind of flange stop valve

JIS F7375 J kind of flange stop valve

Quantity: 0 Pieces
Size: 50A
Pressure: 5K
Body Material: Cast Iron
Type: Angle BJ Type
  1. Available medium: Steam of 300 degree and under.

  2. DN: 50~300(mm)

  3. Type: AJ and BJ

  4. Materials of mai Parts

(1). Body: Cast Steel;

(2). Cover: Cast Steel;

(3). Disc: Cast Steel;

(4). Stem: Stainless Steel

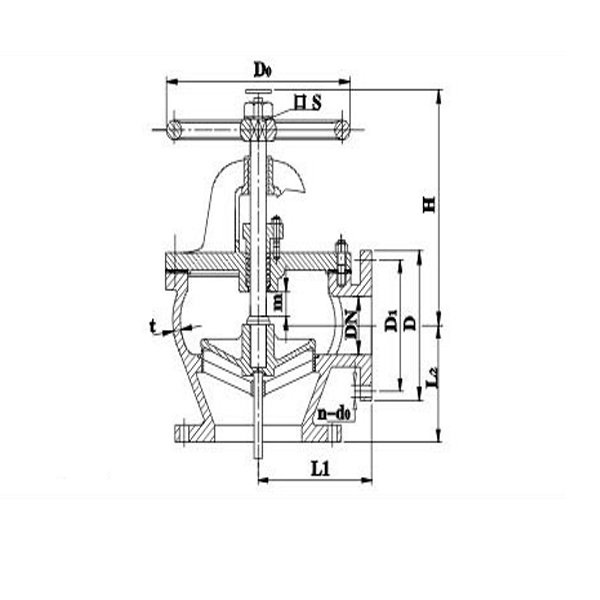

    5. Dimensions

DN

L

H

t

D

D1

b

d

n

D

S

Th

m

kg

50

120

155

10

155

120

20

19

4

160

14

M16

15

18.2

JIS F7375 J kind of flange stop valve1.jpgJIS F7319 J kind of flange stop valve1.jpg
