Quantity: 0 Pieces |
Size: 50A |
Pressure: 10K |
Body Material: Cast Iron |
Type: Straight |
The flanges shall conform to nominal pressure 10K of JIS B2210
Materials:
(1). Body: Cast Iron;
(2). Bonnet: Cast Iron;
(3). Disc: Bronze/Stainless Steel;
(4). Body Seat Ring: Bronze/Stainless Steel;
(5). Arm: Bronze;
(6). Hing Pin: Bronze;
(7). Plug: Bronze;
(8). Disc Nut: Bronze;
(9). Washer: Brass;
(10). Split Pin: Brass;
(11). Bonnet Bolt: Steel;
(12). Bonnet Nut: Steel;
(13). Gasket: Non Asbestos

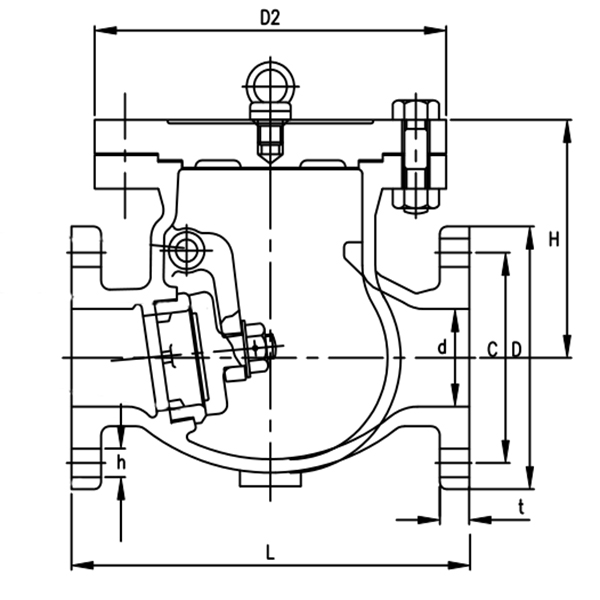

3. Dimensions
Type | Size | L | D | C | No. | h | t | H | D2 |
F7373 10K | 50 | 210 | 155 | 120 | 4 | 19 | 20 | 109 | 150 |
