JIS F7333(B) 65A Bronze Hose Valve

1. The flanges shall conform to nominal pressure 10K of JIS B2210

2. Materials:

(1). Body: Bronze;

(2). Bonnet: Bronze;

(3). Disc Bronze;

(4). Disc Nut: Bronze Brass;

(5). Packing Gland:  Bronze Brass;

(6). Stem: Brass;

(7). Handwheel: Cast Iron;

(8). Hexagon Nut: Steel;

(9). Hexagon Nut: Steel;

(10). Hexagon Nut: Steel;

(11). Stud Bolt: Steel;

(12). Stud Bolt: Steel;

(13). Split Pin: Brass;

(14). Disc Lock Washer: Brass;

(15). Packing: Non Asbestos:

(16). Gasket:L Non Asbestos;

(17). Washer: steel;

(18). Base Connection: Bronze;

(19). Cap: Bronze;

(20). Coupling Ring: Bronze;

(21). Set Ring: Bronze;

(22). Set Screw: Brass;

(23). Chain: Stainless Wire;

(24). Gasket: Rubber;

(25). Gasket: Non Asbestos;

(26). Valve Seat: Bronze

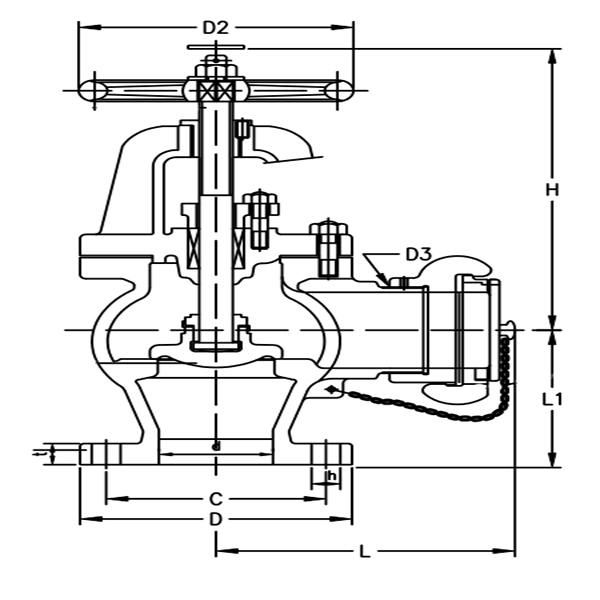

    3. Dimensions
