Quantity: 10 Pieces |
Size: 65A |
Pressure: 16K |
Body Material: Bronze |
Type: Straight |
The flanges shall conform to nominal pressure 16K of JIS B2210
JIS F7303 5K for nominal dia 65 shall be made Bolted Bonnet type
Materials:
(1). Bode: Bronze;
(2). Bonnet: Bronze/Brass;
(3). Disc: Bronze/Brass;
(4). Valve Disc Nut: Brass;
(5). Packing Gland: Brass;
(6). Gland Nut: Brass;
(7). Stem: Brass;
(8). Set Screw: Brass;
(9). Hendweel: Cast Iron;
(10). Hexagon Nut: Brass;
(11). Split Pin: Brass;
(12). Lock Plate: Brass;
(13). Disc Lock Washer: Brass;
(14). Packing: Non Asbestos;
(15). Washer: Steel;
(16). Indicator Plate: Brass;
(17). Indicator Piece: Brass
4. Dimensions
Type | Size | L1 | D | C | No. | h | t | H | D2 |
F7303 16K | 65 | 250 | 155 | 130 | 4 | 15 | 14 | 260 | 160 |

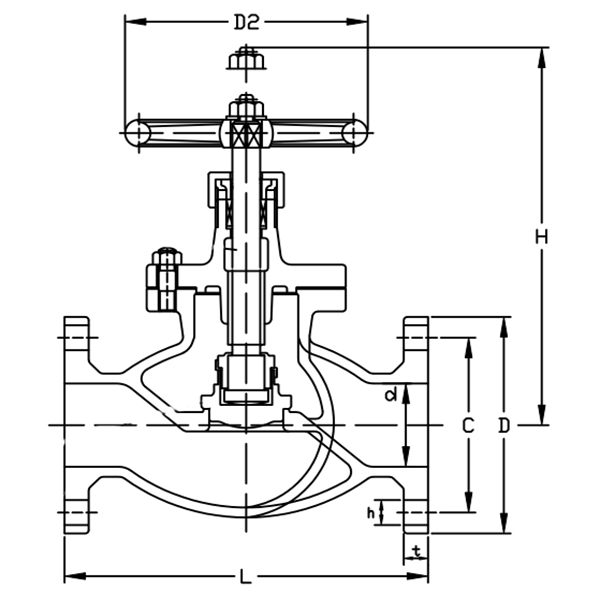

5. Drawing
