| Standard: JIS F 2014-1987 |
| Nominal dia.: 150mm~500mm |
| Availible cert.: CCS, ABS, BV, DNV, LR and other certificates. |
JIS F 2014-1987 Fairlead Roller
Introduction:
JIS F2014-1987 fairlead roller is used for JIS F2014-1987 Fairlead, JIS F2014-1987 Fairlead has types as following: open type AF AS (with two rollers); closed type BF BS (with two rollers); open type CF CS (with three rollers); closed type DF DS(with three rollers).
We can also provide many types of marine equipments. If you want more informations about our products, please contact us by sending an email or make us a phone call.

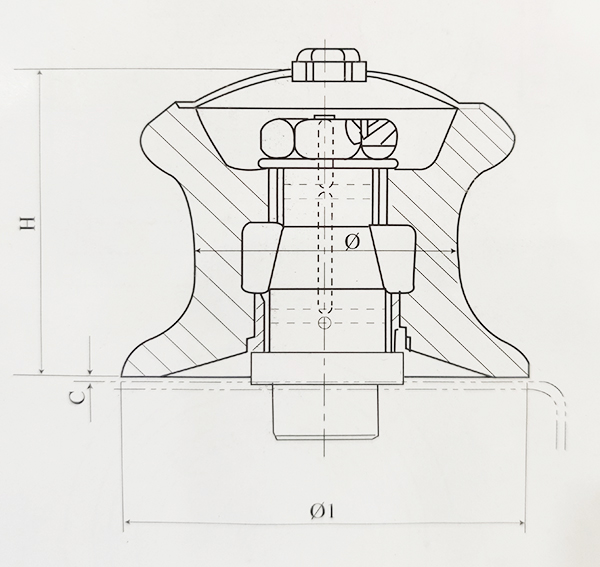

Drawings and Parameters of JIS F 2014-1987 Fairlead Roller:
Nominal Dia. (mm) | Φ (mm) | Φ1 (mm) | Φ2 (mm) | H (mm) | c |
150 | 150 | 216 | 240 | 137 | 5 |
200 | 200 | 280 | 310 | 157 | 5 |
250 | 250 | 350 | 380 | 177 | 6 |
300 | 300 | 400 | 440 | 197 | 7 |
350 | 350 | 460 | 500 | 217 | 7 |
400 | 400 | 520 | 560 | 237 | 7 |
450 | 450 | 590 | 630 | 257 | 7 |
500 | 500 | 660 | 700 | 277 | 7 |
Picture of JIS F 2014-1987 Fairlead Roller:
