Vertical Sheave Fairlead
  • Vertical Sheave Fairlead
Vertical Sheave Fairlead

Vertical Sheave Fairlead

Type: vertical roller
Suitable rope dia: 20mm~76mm
Availible cert.: CCS, ABS, BV, DNV, LR and other certificates.

Vertical Sheave Fairlead

Vertical Sheave Fairlead 1.jpg

Introduction:

    Vertical sheave fairleads are also called vertical fairleads, it is often used in tugboats and work boats. The important part of pulley fairleads is made up of alloy steel. If you need it, we can customize this product for you.

    Since the establishment of the company, we have established good business relationships with customers all over the world. We can customize products according to customers' drawings, and sometimes we will make professional suggestions according to customers' usage scenarios and conditions.

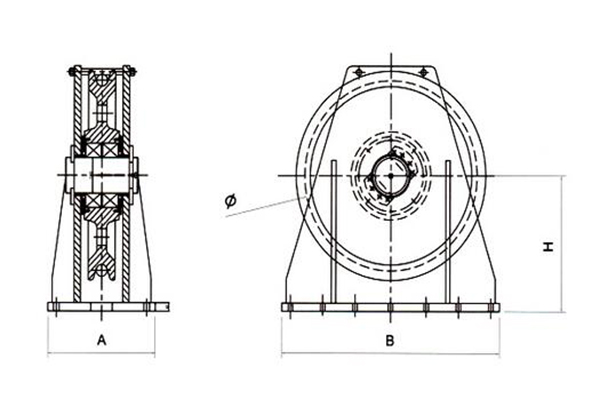

Drawings and Parameters of Vertical Sheave Fairlead:

Vertical Sheave Fairlead 3.jpg

Max. Wire Dia.

(mm)

A

(mm)

B

(mm)

H

(mm)

Φ

(mm)

20

280

390

220

340

25

330

480

265

425

32

406

590

340

520

38

362

690

380

600

44

560

815

450

710

52

610

1010

570

880

60

760

1100

600

930

68

920

1150

650

956

76

1350

1250

720

1120
