| Standard: German standard |
| Suitable chain size: 36mm~152mm |
| Availible cert.: CCS, ABS, BV, DNV, LR and other certificates. |
German Standard Anchor Chain Releaser
Introduction:
The anchor releaser in the DIN 81860 standard is made of cast steel or stainless steel. It is manufactured through multiple processes. When the ship is in danger or the anchor is stuck, the anchor releaser can release the anchor chain simply and effectively. if you are interested in our products, please contact us.We can issue CCS, ABS, BV, DNV and other certificates for the products.
We can also provide many types of marine equipments. If you want more informations about our products, please contact us by sending an email or make us a phone call.

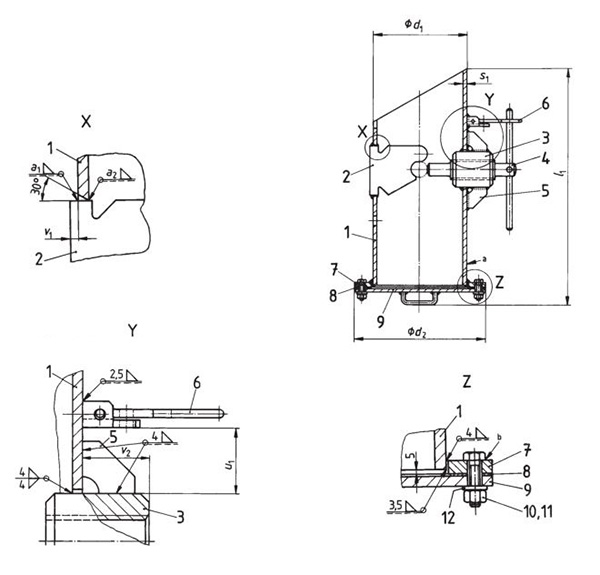

Drawings and Parameters of German Standard Anchor Chain Releaser:
Applicable Anchor Chain Dia. (mm) | d1 x s1 | d2 | l1 | u1 | v1 | v2 | a1 | a2 |
36,38,40,42,44,46 | 273 x 12.5 | 375 | 735 | 75 | 10 | 75 | 6 | 3 |
48,50,52,54,56 | 323.9 x 14.2 | 440 | 835 | 95 | 12 | 90 | 6 | 4 |
58,60,62,64,66,68 | 406.4 x 16 | 540 | 995 | 110 | 14 | 95 | 8 | 5 |
70,73,76,78,81 | 508 x 17.5 | 645 | 1245 | 105 | 15 | 100 | 10 | 6 |
84,87,90,92 | 508 x 17.5 | 645 | 1245 | 130 | 15 | 150 | 10 | 6 |
95,97,100,102,105 | 610 x 20 | 754 | 1430 | 130 | 18 | 150 | 10 | 8 |
107,111,114 | 610 x 20 | 754 | 1430 | 170 | 18 | 185 | 10 | 8 |
117,120,122,124,127 | 711 x 22.2 | 856 | 1615 | 170 | 20 | 185 | 12 | 8 |
130,132,137 | 813 x 22.2 | 958 | 1790 | 170 | 20 | 185 | 12 | 8 |
142,147,152 | 914 x 25 | 1060 | 1970 | 190 | 22 | 200 | 14 | 10 |
