| Quantity: 0 Pieces |
| Size: DN 50 |
| Pressure: 0.6MPa |
| Body Material: Gray cast iron |
| Type: BS |
Applicable Medium: Sea water, Fresh water, Lubricanting oil, Fuel oil t≤220℃ steam
Materials of Main Parts:
(1). Body: Gray Cast Iron;
(2). Cover: Gray Cast Iron;
(3). Disc: Cast Tin Bronze;
(4). Sea: Cast Aluminum Bronze;
(5). Stem: Aluminum Bronze
3. Dimensions
PN (MPa) | DN (mm) | L | H | H1 | t | D | D1 | D2 | dₒ | b | n | Th. | Dₒ | S | m | kg |
0.6 | 50 | 125 | 258 | 125 | 8 | 140 | 110 | 90 | 14 | 16 | 4 | M12 | 140 | 12 | 14 | 12.2 |

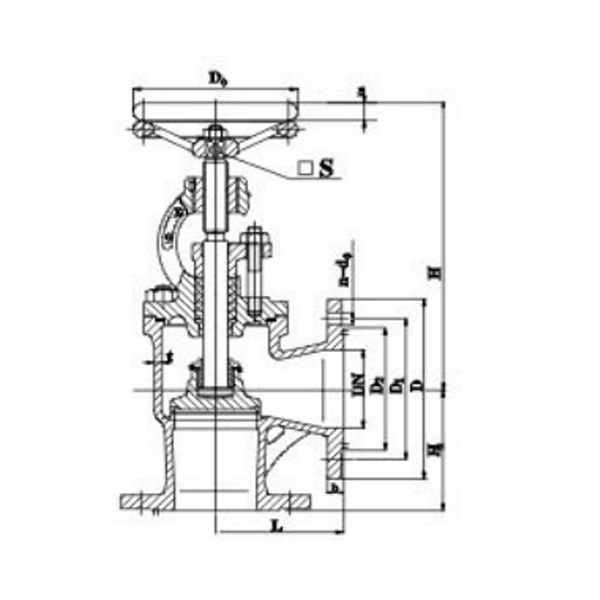

4. Drawing
