| Material: ZG230-450 |
| Standard: ISO13729 |
| Type: Deck-Mounted |
| Surface: Zinc rich primer |
| Availible cert.: CCS, ABS, BV, DNV, LR and other certificates. |
Deck-Mounted Chock SWL 64T
Introduction:
The closed chock is a common ship device installed on the ship to guide the movement of the ropes. In the ISO 13729-2012 standard, there are two types of closed chocks: A type and B type. Type A is installed on the deck and type B is installed on the bulwark.

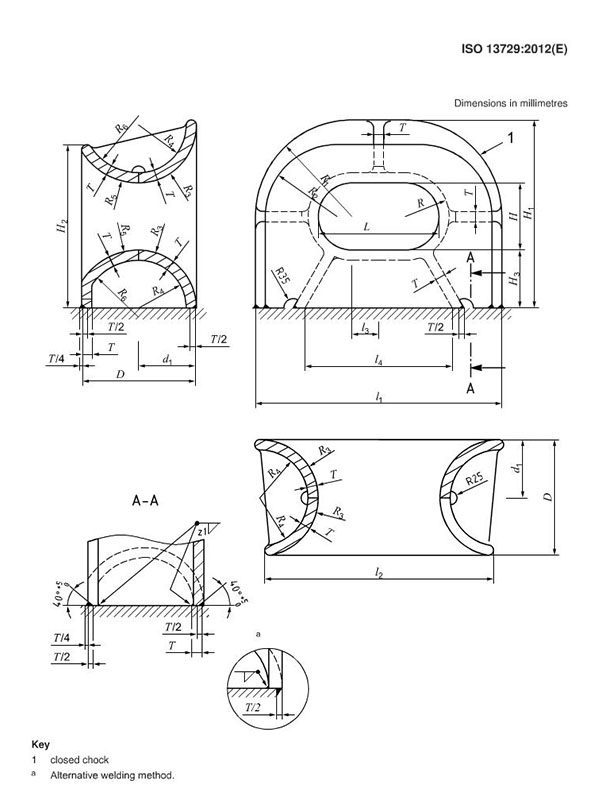

Drawings and Parameters of Deck-Mounted Chock SWL 64T:
Form 1-1:
Nominal size L*H*D | l1 | l2 | l3 | l4 | H1 | H2 | H3 | R | R1 | R2 | R3 |
400*250*381 | 820 | 754 | 139 | 475 | 652 | 553 | 192 | 125 | 335 | 236 | 192 |
Form 1-2:
Nominal size L*H*D | R4 | R5 | R6 | d1 | T | Welding Leg length | SWL | Wire Rope Diameter (recommended) | Calculated weight (kg) | |
z1 | KN | t | ||||||||
400*250*381 | 156 | 250 | 214 | 192 | 36 | 9 | 687 | 70 | 32 | 310 |

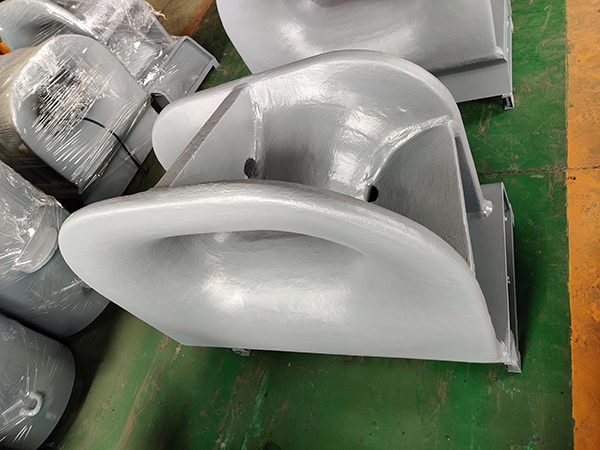

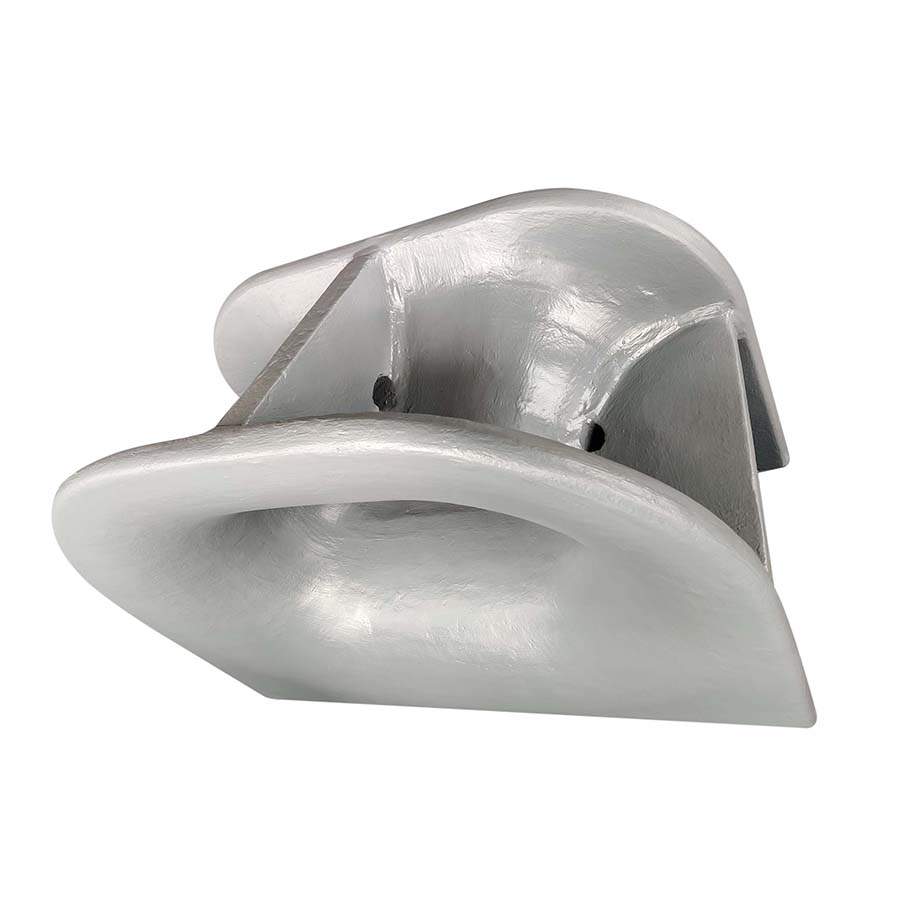

Picture of Deck-Mounted Chock SWL 64T:
