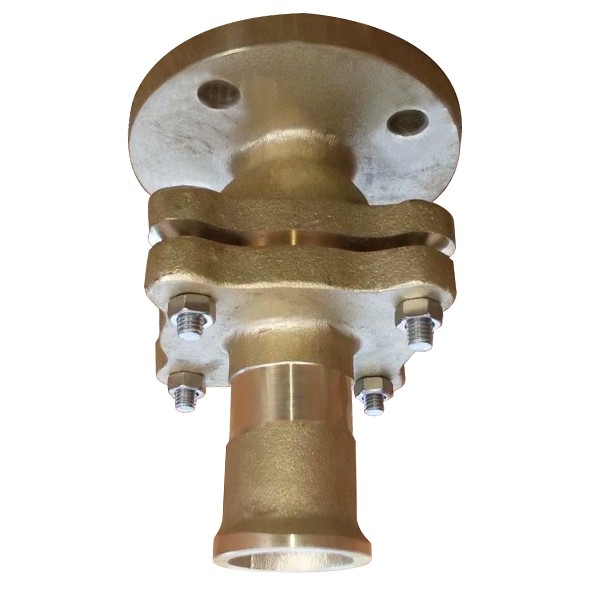

CBT3478 Suction Check Valve
  • CBT3478 Suction Check Valve
CBT3478 Suction Check Valve

CBT3478 Suction Check Valve

Quantity: 1 Pieces
Size: DN32
Pressure: 1.0 MPa
Body Material: Gray cast iron, Cast silicon brass
Type: R
  1.   Applicable Medium:  Oil, Sea Water, Fresh Water

  2. Materials of Main Parts:

(3). Body: Gray cast iron、Cast silicon brass;

(2). Disc: Gray cast iron、Cast silicon brass

(3). Stem: Silicon brass

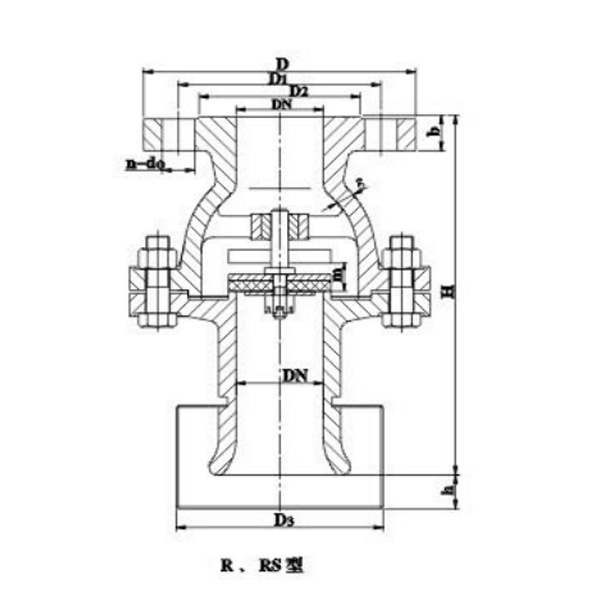

   3. Dimensions

Size

h

H

thickness

D

D3

D1

D2

d

b

Th.

n

m

kg

32

15

150

7

155

85

83

64

15

13

M14

6

9

2.08
