CB T711-95 Spek Anchor 4320kgs
CB T711-95 Spek Anchor 4320kgs

CB T711-95 Spek Anchor 4320kgs

Quantity: 0 pieces
Nominal weight: 4320kgs
Material: ZG200-400C
Holding power: Normal holding power
Surface treatment: Bituminous paint

CB T711-95 Spek Anchor 4320kgs

CB T711-95 Spek Anchor 4320kgs 1.jpg

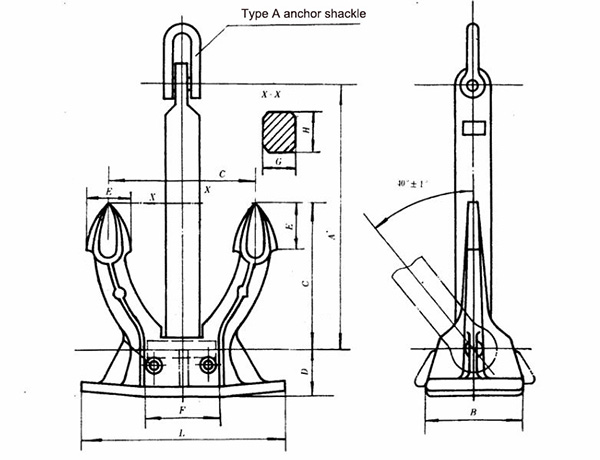

Drawings and Parameters of CB T711-95 Spek Anchor 4320kgs:

CB T711-95 Spek Anchor 4320kgs 3.JPG


Nominal Weight

(kg)

A

(mm)

C

(mm)

D

(mm)

L

(mm)

E

(mm)

B

(mm)

F

(mm)

G

(mm)

H

(mm)

Anchor Shackle

(GB/T 547)

4320

2520

1400

413

1926

438

914

610

266

322

a20
