| Quantity: 0 Pcs |
| Diameter:60/80/100 mm(as requirements). |
| Surface: as requirements |
| Breaking load:1570,1670,1770,1870,1960 Mpa |
Detail:
Certificate：ABS，LR，CE，CCS，BV，DNV
Standard：GB8919，GB/T 20067, ISO, ASTM, EN, JIS, etc.

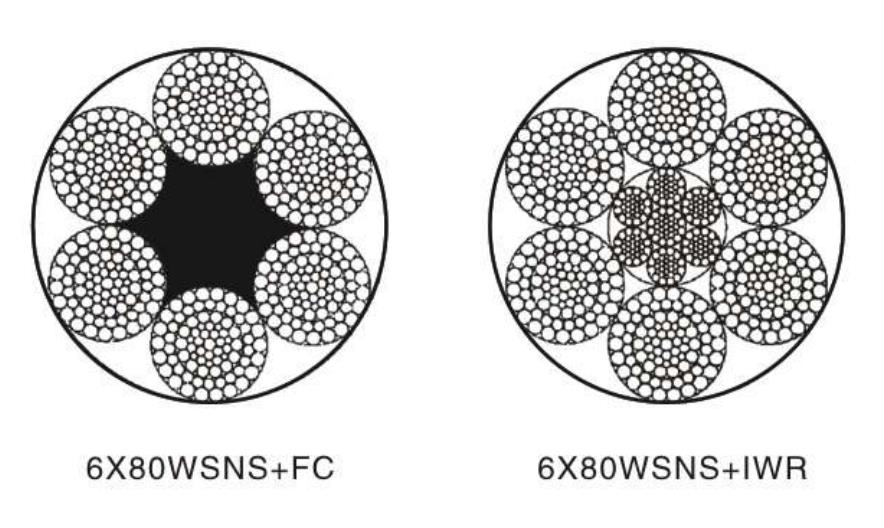

Common construction：6×80WSNS+FC,6×80WSNS+IWR
Diameter:60-156 mm(as requirements)
Breaking load:1570,1670,1770,1870,1960 Mpa
Surface treatment: as requirements.
Application: drilling lifting, ship building, cranes, hoisting, marine engineering, aerial cableway, etc.
Specification:
(Note：If there are other requirements, it can be customized according to requirements.)
Rope dia.(mm) | Approx.weight (kg/100m) | Nominal tensile strength grade of rope(MPa) | ||||||||||
1570 | 1670 | 1770 | 1870 | 1960 | ||||||||
Minimum breaking load of rope(kN) | ||||||||||||
D | FC | IWR | FC | IWR | FC | IWR | FC | IWR | FC | IWR | FC | IWR |
60 | 1370 | 1570 | 1800 | 1960 | 1910 | 2080 | 2030 | 2200 | 2140 | 2330 | 2240 | 2440 |
80 | 2430 | 2780 | 3200 | 3480 | 3400 | 3700 | 3600 | 3920 | 3810 | 4140 | 3990 | 4340 |
100 | 3800 | 4350 | 4990 | 5430 | 5310 | 5780 | 5630 | 6120 | 5950 | 6470 | 6230 | 6780 |
Minimum aggregate breaking force of wire ＝Minimum aggregate breaking force of rope×1.25(fiber core)or×1.33(steel core) | ||||||||||||
