| Quantity: 0 pcs |
| Material: Aluminum |
| Working Height Range: Above 20m, below 7m |
| Certificate: BV |
Port Boarding Ladder
Boarding ladder is an equipment for people boarding and disembarking safely and favourably during oil tanker operating at modern size oil dock. The boarding ladder can well solve the problem that the ship and the dock cannot be connected. The material of ladder body is aluminum alloy, it is light and safe. The hydraulic system is arranged suitably, weather proof and convenient to maintain. The wireless remote made operating more convenient.
Main Technical Parameters
| equipment gross power | 10kw |
| equipment weight | 26T |
| working height range | Above 20m, below 7m |
| swing angle of platform | ±90°,360° |
| working grade | M4 |
| pitching angle of main ladder | ±50° |
| pitch angle of front ladder | 60° |
| design pressure of hydraulic cylinder | 16MPa |
| explosion proof grade | DIIBT4 |
| protection grade | IP55 |
| type | B L × |

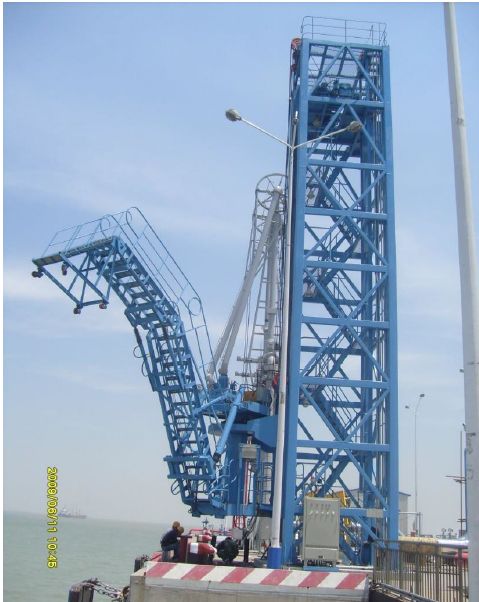

Product Picture
