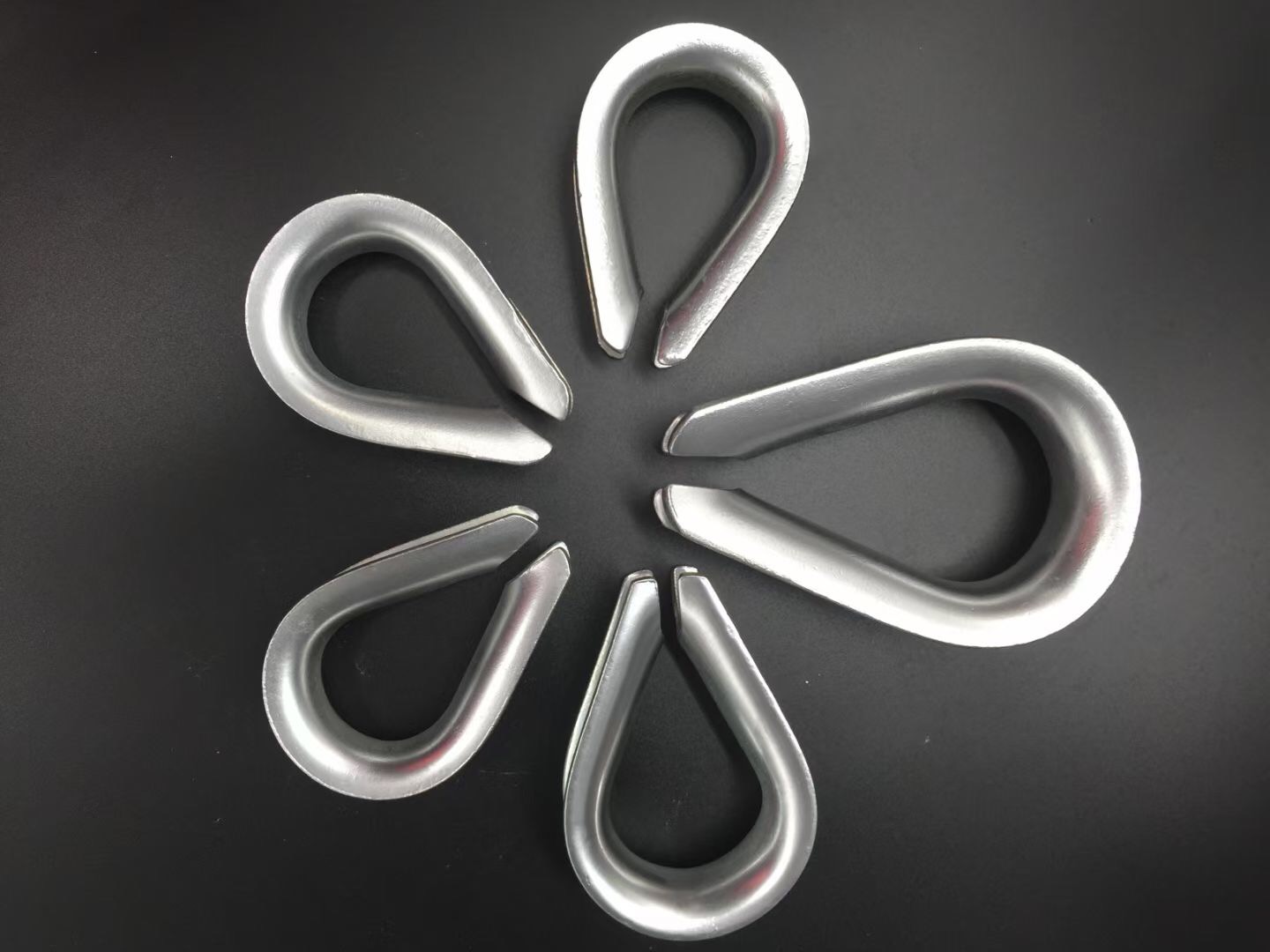

Ordinary Thimbles G414
  • Ordinary Thimbles G414
Ordinary Thimbles G414

Ordinary Thimbles G414

Quantity:20 Pcs
Material: low carbon steel
Surface: hot dipped galvanized, electronic galvanized (as requirements)
Certificate:Third-party Inspection

Detail:

Material: low carbon steel

Surface: hot dipped galvanized, electronic galvanized (as requirements)

Application: sling condition, marine condition, etc.

Recommend rope diameter: 8 mm-70 mm(as requirements)

Produce Process:

Drawings mould making pre-forging rough machining or finish machining surface treatment product checking and quality control packing delivery

Specification:

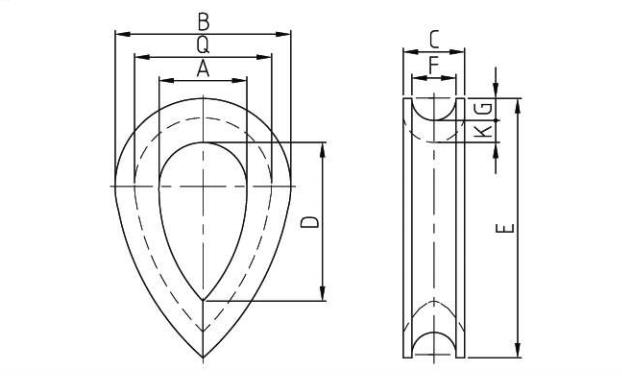

Drawing/sheet of ordinary thimbles G414


Wire Rope Diameter

Weight

100Piece/Kg

Sizemm)

(mm)

(in)

A

B

C

D

E

F

G

H

6-7

1/4

2.95

55.5

41.4

38.1

22.4

11.2

7.1

1.5

5.85

18-20

3/4

72

127|

95.5

96.5

51

33

19.8

5.60|

16.8

22

7/8

81

140

108

108

57

37.3

23.9

5.6

19.1

24-26

1

142

156

114

125

63.5

44.5

26.9l

6.35

22.4

56

2-1/4

1792

435

356

302

178

98.6

60.5

16

41.4
