| Quantity: 0 Pieces |
| Size: DN 100 |
| Pressure: 1.0MPa |
| Body Material: cast iron |
| Type: FSG |
Available Medium: Sea water, Fresh water, Air, Crude oil and fnished oil that temperature is 70 and under.
Materials of Main Parts:
(1). Body: Cast iron;
(2). Disc: Aluminum;
(3). Stem: Stainless steel
3. Dimensions
MPa | DN | H | H1 | H2 | L1 | Dₒ | D | D1 | n | Th. |
1.0 | 100 | 380 | 145 | 195 | 160 | 160 | 185 | 150 | 8 | M16 |

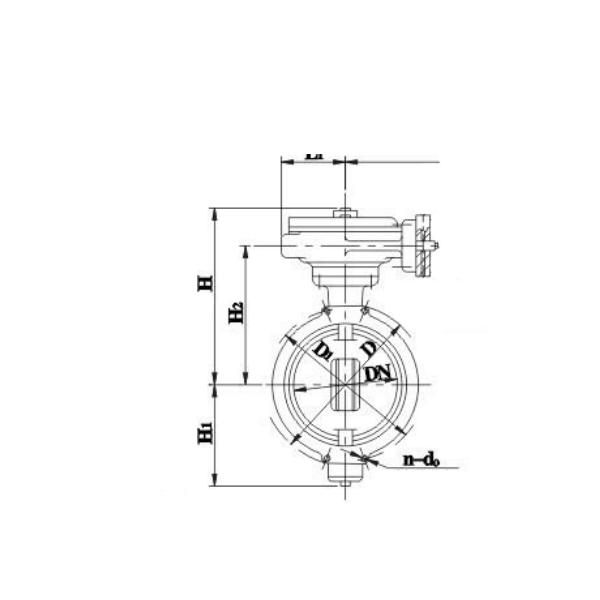

4. Drawing
