| Quantity: 1 set |
| Lubricating medium: oil |
| Brand: HI-SEA |
| Model: JQ/CS |
| Certifiacte: CCS, BV, DNV-GL,etc. |
JQ/CS 39 Stern Shaft Sealing Apparatus
Application
When inland water veseels have oil as their lubricating working medium and do not have a large stern shaft, this type of apparatuses is suggested to be choosen.
Technical Parameters
Model | D | A | B | C | E | H | K | T | N | P | S | n | F | Front Weight(kg) | Back Weight(kg) |
70JQ/CS39 | 70 | 176 | 150 | 122 | 110 | 17.5 | 144 | 116 | 90 | 130 | 145 | 6 | 80 | 9 | 10.5 |
80JQ/CS39 | 80 | 185 | 160 | 132 | 120 | 17.5 | 146 | 126 | 100 | 140 | 155 | 6 | 90 | 10.2 | 11.8 |
90JQ/CS39 | 90 | 195 | 170 | 142 | 130 | 17.5 | 148 | 136 | 110 | 150 | 165 | 8 | 100 | 11.5 | 13.5 |
100JQ/CS39 | 100 | 205 | 180 | 152 | 140 | 17.5 | 150 | 146 | 120 | 160 | 175 | 8 | 110 | 13 | 16 |
110JQ/CS39 | 110 | 220 | 190 | 162 | 150 | 17.5 | 150 | 156 | 130 | 170 | 185 | 8 | 120 | 15 | 19 |
120JQ/CS39 | 120 | 235 | 200 | 172 | 160 | 20 | 152 | 166 | 145 | 180 | 195 | 8 | 130 | 17.8 | 22.5 |

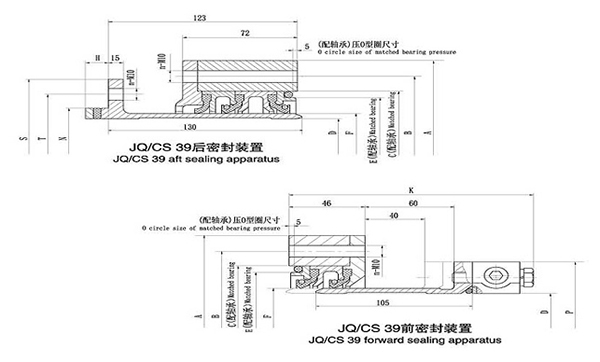

Drawing of JQ/CS 39 Stern Shaft Sealing Apparatus
