| Quantity: 0 pieces |
| Nominal weight: 300kgs |
| Material: ZG200-400C |
| Holding power: Normal holding power |
| Surface treatment: Bituminous paint |

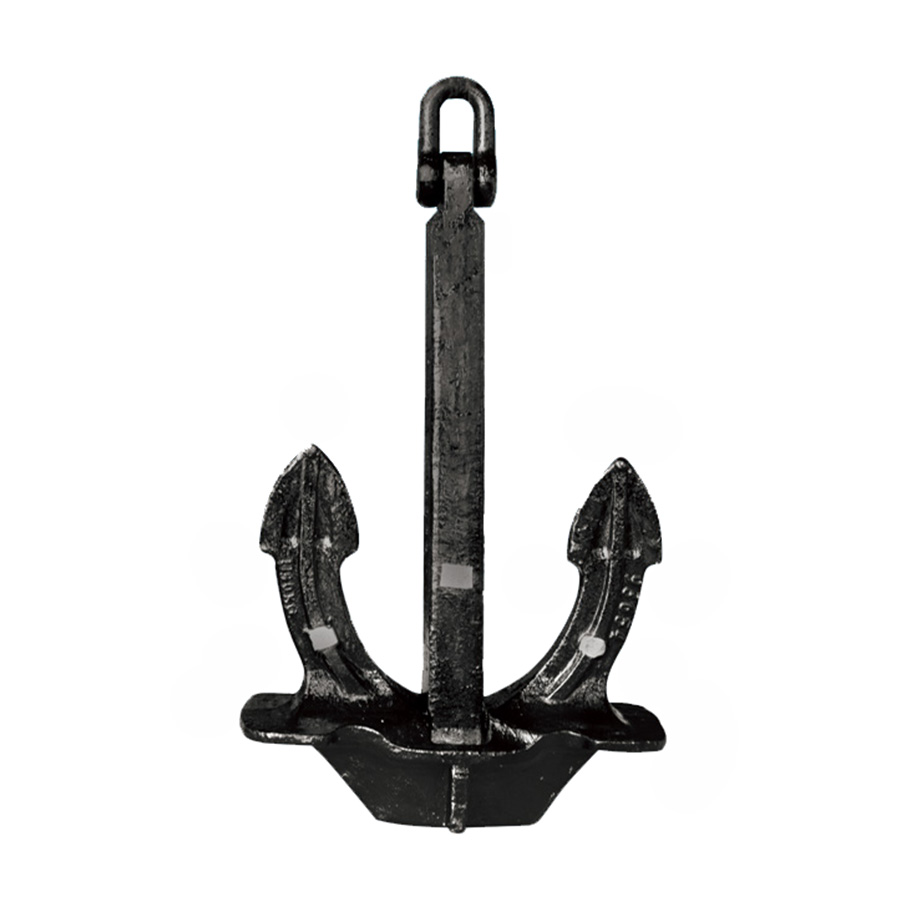

Japan Stockless Anchor 300kgs

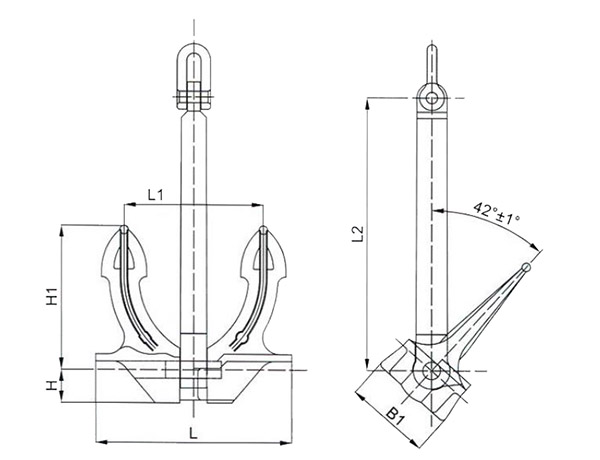

Drawings and Parameters of Japan Stockless Anchor 300kgs:
Nominal Weight (kg) | L (mm) | L1 (mm) | L2 (mm) | H (mm) | H1 (mm) | B1 (mm) |
300 | 770 | 540 | 1080 | 131 | 570 | 331 |
