| Quantity: 0 Pieces |
| Size: 80A |
| Pressure: 10K |
| Body Material: Cast Iron, Cast Steel, Steel, Cast Tin Bronze |
| Type: Straight |
The flanges shall conform to nominal pressure 10K JIS B2240
Materials:
(1). Body: Stainless Steel;
(2). Bonnet: Stainless Steel;
(3). Disc: Stainless Steel;
(4). Hinge Pin: Stainless Steel;
(5). Plug: Brass/Stainless Steel

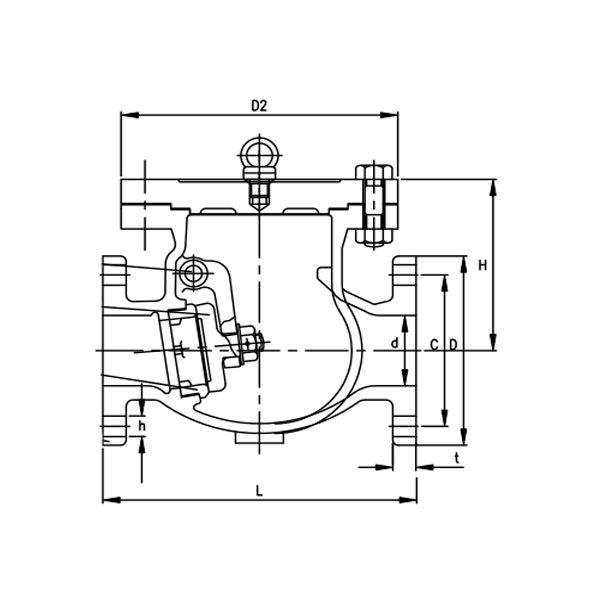

3. Dimensions
Type | Size | L | D | C | No. | h | t | H | D2 |
F7373 10K | 80 | 270 | 185 | 150 | 8 | 19 | 22 | 136 | 185 |
