Quantity: 0 Pieces |
Size: 200A |
Pressure: 10K |
Body Material: Cast Iron |
Type: Straight |
The flanges shall conform to nominal pressure 10K of JIS B2210
Materials:
(1). Body: Cast Iron;
(2). Bonnet: Cast Iron;
(3). Disc: Bronze/Stainless Steel;
(4). Body Seat Ring: Bronze/Stainless Steel;
(5). Arm: Bronze;
(6). Hing Pin: Bronze;
(7). Plug: Bronze;
(8). Disc Nut: Bronze;
(9). Washer: Brass;
(10). Split Pin: Brass;
(11). Bonnet Bolt: Steel;
(12). Bonnet Nut: Steel;
(13). Gasket: Non Asbestos
3. Dimensions
Type | Size | d | D | C | N-h | t | L | H | kg |
F7373 10K
| 200A | 200 | 330 | 290 | 12-23 | 26 | 480 | 242 | 103 |

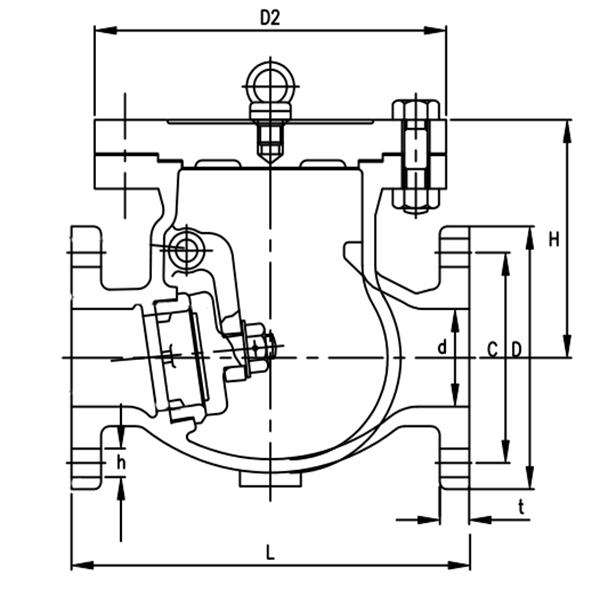

4. Drawing
