JIS F7368 15A Bronze Gate Valve
  • JIS F7368 15A Bronze Gate Valve
JIS F7368 15A Bronze Gate Valve

JIS F7368 15A Bronze Gate Valve

Quantity: 7 Pieces
Size: 15A
Pressure: 10K
Body Material: Bronze
Type: Straight
  1.  The flanges shall conform to nominal pressure 10K of JIS B2210

  2. The name plate shall be specified by purchaser as required

  3. Materials:

(1). Bode: Bronze;

(2). Bonnet: Bronze/Brass;

(3). Disc: Bronze/Brass;

(4). Valve Disc Nut: Brass;

(5). Packing Gland: Brass;

(6). Gland Nut: Brass;

(7). Stem: Brass;

(8). Set Screw: Brass;

(9). Hend weel: Cast Iron;

(10). Hexagon Nut: Brass;

(11). Split Pin: Brass;

(12). Lock Plate: Brass;

(13). Disc Lock Washer: Brass;

(14). Packing: Non Asbestos;

(15). Washer: Steel;

(16). Indicator Plate: Brass;

(17). Indicator Piece: Brass

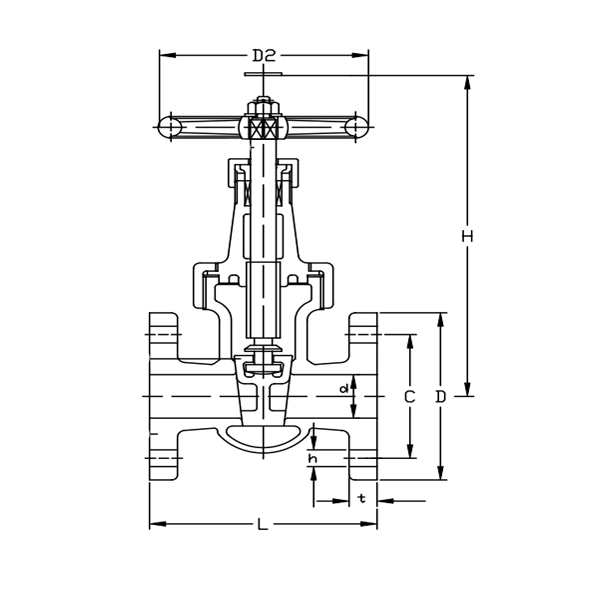

    4. Dimensions

Type

Size

L

D

C

No.

h

t

H

D2

F7368

10K

15

90

80

60

4

12

9

1175

80
