JIS F7367 J is similar to the flange bronze
  • JIS F7367 J is similar to the flange bronze
JIS F7367 J is similar to the flange bronze

JIS F7367 J is similar to the flange bronze

Quantity: 0 Pieces
Size: 25A
Pressure: 5K
Body Material: Bronze
Type: Straight
  1. Available medium: Oil, Pulsation Water

  2. DN: 14 ~ 40(mm)

  3. Materials of main Parts:

(1). Body: Bronze;

(2). Cover: Bronze;

(3): Brake board: Bronze;

(4). Overcoat nut: Bronze;

(5). Hand weel: Cast Iron;

(6). Stem: Lead Brass

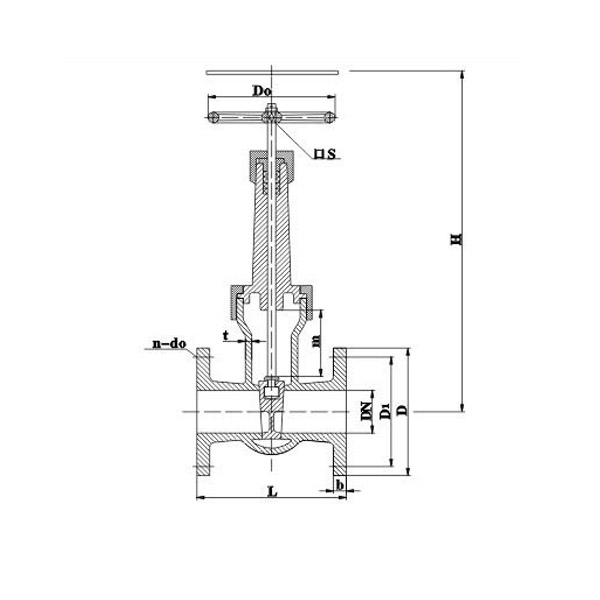

    4. Dimensions

DN

L

H ≈

t

D

b

d

n

Th

D

S

m

kg

25

110

220

4.5

95

10

12

4

M10

100

10

32.5

4.10

JIS F7367 J is similar to the flange bronze.jpgJIS F7367 J is similar to the flange bronze1.jpg
