JIS F7351 32A Bronze Globe Valve

1. The flanges shall conform to nominal pressure 5K of JIS B2240

2.  JIS F7301 5K for nominal dia 32 shall be mode Botled Bonnet type

   3. Materials:

(1). Bode: Bronze;

(2). Bonnet: Bronze/Brass;

(3). Disc: Bronze/Brass;

(4). Valve Disc Nut: Brass;

(5). Packing Gland: Brass;

(6). Gland Nut: Brass;

(7). Stem: Brass;

(8). Set Screw: Brass;

(9). Hendweel: Cast Iron;

(10). Hexagon Nut: Brass;

(11). Split Pin: Brass;

(12). Lock Plate: Brass;

(13). Disc Lock Washer: Brass;

(14). Packing: Non Asbestos;

(15). Washer: Steel;

(16). Indicator Plate: Brass;

(17). Indicator Piece

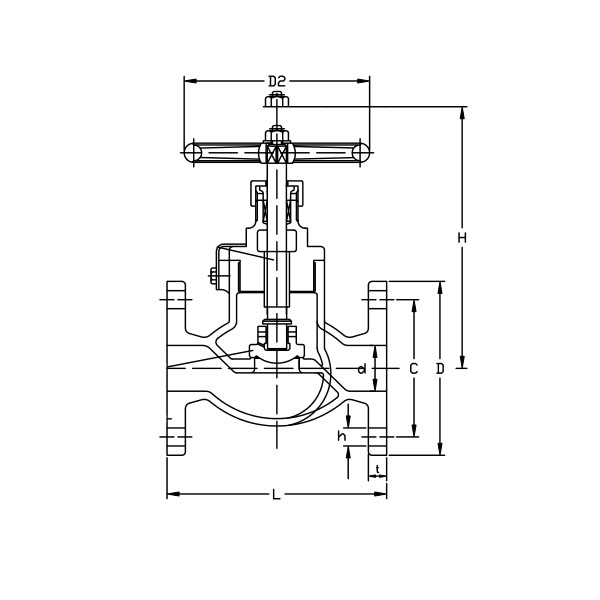

    4. Dimensions
