JIS F7304-JIS 5K Bronze Angle Valve
  • JIS F7304-JIS 5K Bronze Angle Valve
JIS F7304-JIS 5K Bronze Angle Valve

JIS F7304-JIS 5K Bronze Angle Valve

Quantity: 0 Pieces
Size: 65A
Pressure: 5K
Body Material: Bronze
Type: Angle
  1. The flanges shall conform to nominal pressure 5K of JIS B 2240

  2. Flanges as per JIS B2220 - 5K or 16K

  3. Weight: 12kg

  4. Materials:

(1). Body: Bronze;

(2). Bonnet: Bronze/Brass;

(3). Disc: Bronze/Brass;

(4). Valve Disc Nut: Brass;

(5). Packing Gland: Brass;

(6). Gland Nut: Brass;

(7). Stem: Brass;

(8). Set Scrw: Brass;

(9). Handwheel: Cast Iron;

(10). Hexagon Nut: Brass;

(11). Splitpin: Brass;

(12). Lock Plate: Brass;

(13). Disc Lock Washer: Brass;

(14). Packing: Non Asbestos;

(15). Washer: Steel;

(16). Indicator Plate: Brass;

(17). Indicator Piece: Brass

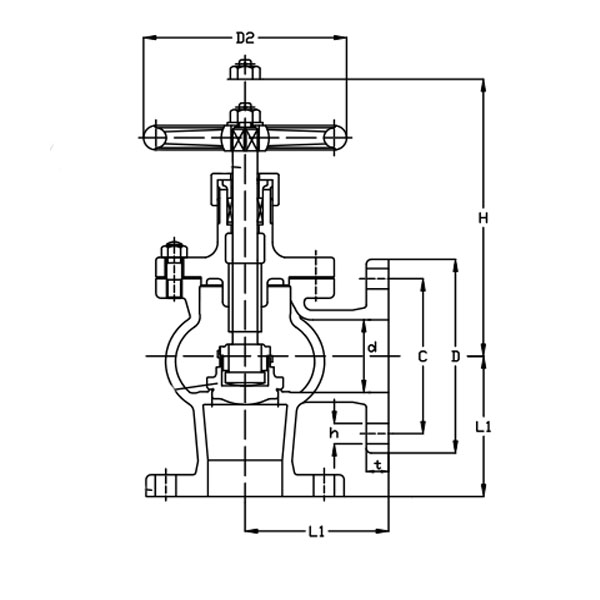

   3. Dimensions

Type

Size

L1

D

C

No.

h

t

H

D2

F7304

5K

65

115

155

130

4

15

14

220

160


JIS F7304-JIS 5K Bronze Angle Valve.jpgJIS F7304-JIS 5K Bronze Angle Valve.jpg
