Material: ZG230-450 |
Standard: ISO13729 |
Type: Bulwark-Mounted |
Surface: Zinc rich primer |
Availible cert.: CCS, ABS, BV, DNV, LR and other certificates. |
ISO13729 Bulwark-Mounted Chock Type B
Introduction:
The closed chock is a common ship device installed on the ship to guide the movement of the ropes. In the ISO 13729-2012 standard, there are two types of closed chocks: A type and B type. Type A is installed on the deck and type B is installed on the bulwark.

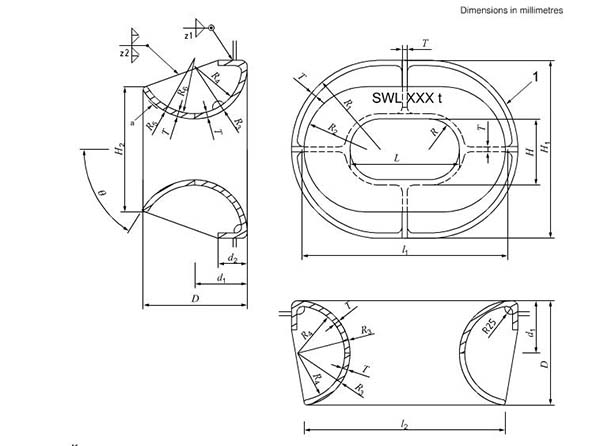

Drawings and Parameters of ISO13729 Bulwark-Mounted Chock Type B:
Form 1-1:
Nominal size L*H*D | l1 | l2 | H1 | H2 | R | R1 | R2 | R3 | R4 | R5 |
250×200×214 | 516 | 441 | 466 | 306 | 100 | 233 | 153 | 108 | 96 | 150 |
300×250×286 | 638 | 554 | 588 | 410 | 125 | 294 | 205 | 144 | 128 | 180 |
350×250×333 | 736 | 646 | 636 | 449 | 125 | 318 | 224.5 | 168 | 150 | 200 |
400×250×381 | 834 | 736 | 684 | 450 | 125 | 342 | 225 | 192 | 172 | 250 |
450×250×381 | 884 | 786 | 684 | 450 | 125 | 342 | 225 | 192 | 172 | 250 |
500×250×381 | 934 | 836 | 684 | 450 | 125 | 342 | 225 | 192 | 172 | 250 |
400×250×428 | 882 | 778 | 732 | 515 | 125 | 366 | 257.5 | 216 | 194 | 250 |
450×250×428 | 932 | 828 | 732 | 515 | 125 | 366 | 257.5 | 216 | 194 | 250 |
500×250×428 | 982 | 878 | 732 | 515 | 125 | 366 | 257.5 | 216 | 194 | 250 |
500×400×428 | 982 | 878 | 882 | 665 | 200 | 441 | 332.5 | 216 | 194 | 250 |
500×250×525A | 1078 | 976 | 828 | 551 | 125 | 414 | 275.5 | 264 | 240 | 320 |
500×400×525A | 1078 | 978 | 978 | 701 | 200 | 489 | 350.6 | 264 | 240 | 320 |
500×250×525B | 1078 | 976 | 828 | 554 | 125 | 414 | 277 | 264 | 238 | 320 |
500×400×525B | 1078 | 978 | 978 | 704 | 200 | 489 | 352 | 264 | 238 | 320 |
Form 1-2:
Nominal size L*H*D | R6 | d1 | d2 | T | θ | Welding leg length
| SWL | Wire Rope Diameter (recommended) | Calculated Weight (kg) | ||
z1 | z2 | KN | t | ||||||||
250×200×214 | 138 | 108 | 80 | 12 | 44° | 6 | 5 | 226 | 23 | 18 | 49 |
300×250×286 | 164 | 144 | 100 | 16 | 44° | 8 | 6.5 | 422 | 43 | 24 | 100 |
350×250×333 | 182 | 168 | 120 | 18 | 55° | 9 | 7 | 549 | 56 | 28 | 141 |
400×250×381 | 230 | 192 | 120 | 20 | 47° | 10 | 8 | 687 | 70 | 32 | 184 |
450×250×381 | 230 | 192 | 120 | 20 | 47° | 10 | 8 | 706 | 72 | 32 | 194 |
500×250×381 | 230 | 192 | 120 | 20 | 47° | 10 | 8 | 765 | 78 | 32 | 202 |
400×250×428 | 228 | 216 | 120 | 22 | 56° | 10 | 9 | 883 | 90 | 36 | 264 |
450×250×428 | 228 | 216 | 120 | 22 | 56° | 10 | 9 | 912 | 93 | 36 | 276 |
500×250×428 | 228 | 216 | 120 | 22 | 56° | 10 | 9 | 932 | 95 | 36 | 288 |
500×400×428 | 228 | 216 | 120 | 22 | 56° | 10 | 9 | 893 | 91 | 36 | 311 |
500×250×525A | 296 | 264 | 120 | 24 | 53° | 10 | 9.5 | 1148 | 117 | 44 | 379 |
500×400×525A | 296 | 264 | 120 | 24 | 53° | 10 | 9.5 | 1158 | 118 | 44 | 408 |
500×250×525B | 294 | 264 | 120 | 26 | 53° | 10 | 10.5 | 1413 | 144 | 44 | 405 |
500×400×525B | 294 | 264 | 120 | 26 | 53° | 10 | 10.5 | 1383 | 141 | 44 | 442 |

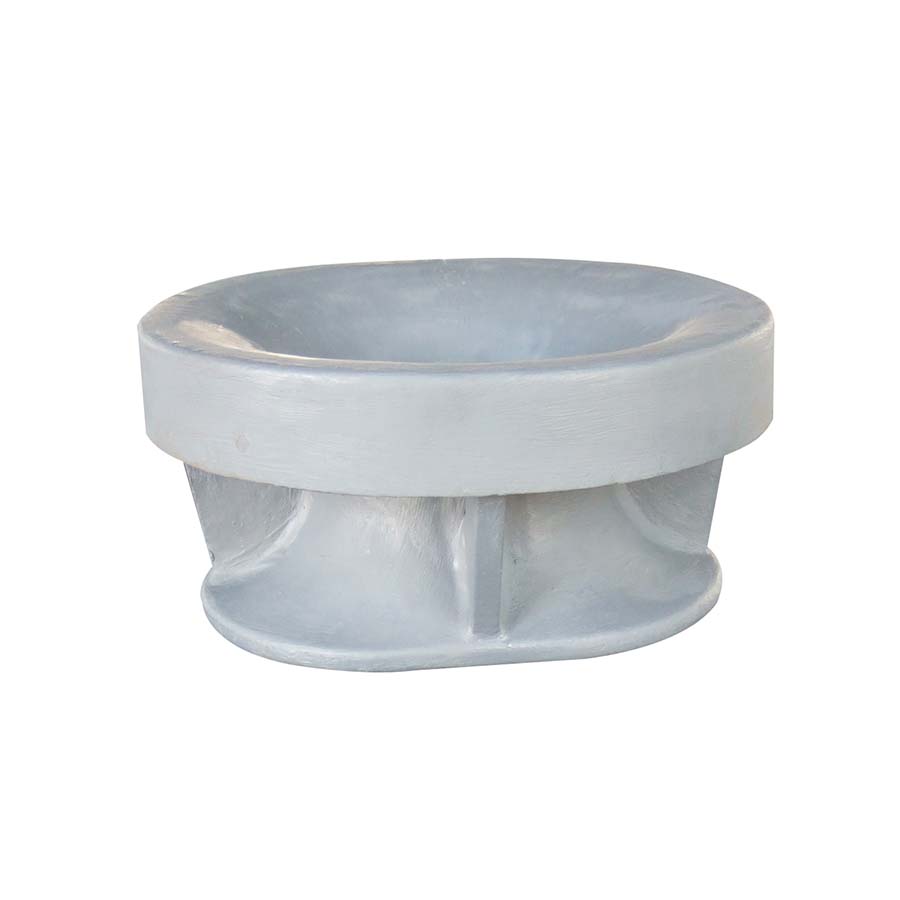

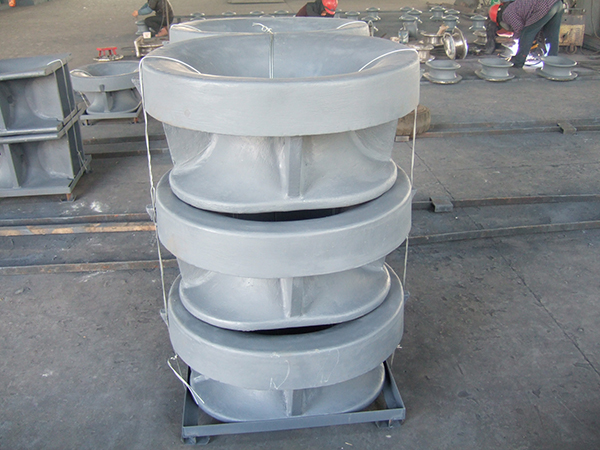

Picture of ISO13729 Bulwark-Mounted Chock Type B:
