GBT584 DN300 Marine Cast Steel Stop Valve
  • GBT584 DN300 Marine Cast Steel Stop Valve
GBT584 DN300 Marine Cast Steel Stop Valve

GBT584 DN300 Marine Cast Steel Stop Valve

Quantity: 0 Pieces
Size: DN300
Pressure: 1.0 MPa
Body Material: Cast Steel
Type: AS
  1. Aplicable Medium: Frash water, Lubricanting oil, Fuel oil,t≤300℃ steam.

  2. Materials of Main Parts:

(1). Body: Cast Steel;

(2). Cover: Cast Steel;

(3). Disc: High-Quality Carbon steel;

(5). Disc Seal Ring: Weld Stainless steel;

(6). Body Seal Ring: Stainless steel

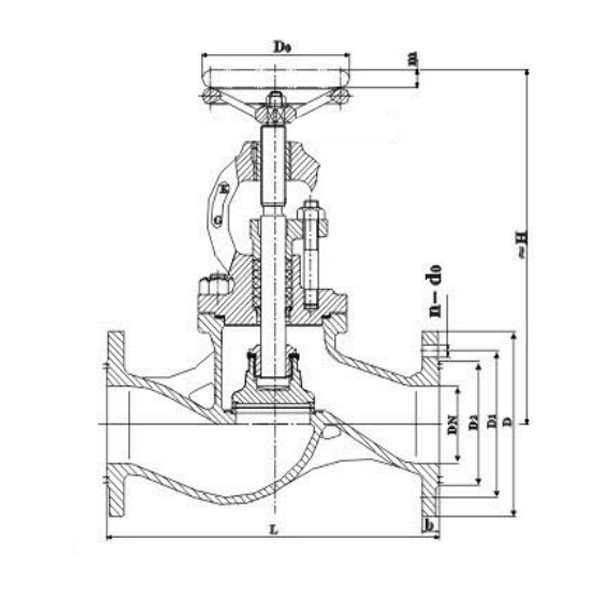

   3. Dimensions

PN

(MPa)

DN

(mm)

L

H

t

D

D1

D2

d

b

n

Th.

D

S

m

kg

1.0

300

850

821

13.0

445

400

370

22

26

12

M20

500

36

100

225.0

GBT584 DN300 Marine Cast Steel Stop Valve.jpgGBT584 DN300 Marine Cast Steel Stop Valve1.jpg
