| Quantity: 0 Pieces |
| Size: DN15 |
| Pressure: 4.0 MPa |
| Body Material: Stainless Steel |
| Type: B |
Aplicable Medium: Frash water, Lubricanting oil, Fuel oil,t≤400℃ steam.
Materials of Main Parts:
(1). Body: Stainless Steel, Carbon Steel;
(2). Cover: Carbon Steel;
(3). Disc: Stainless Steel;
(4). Stem: Stainless Steel

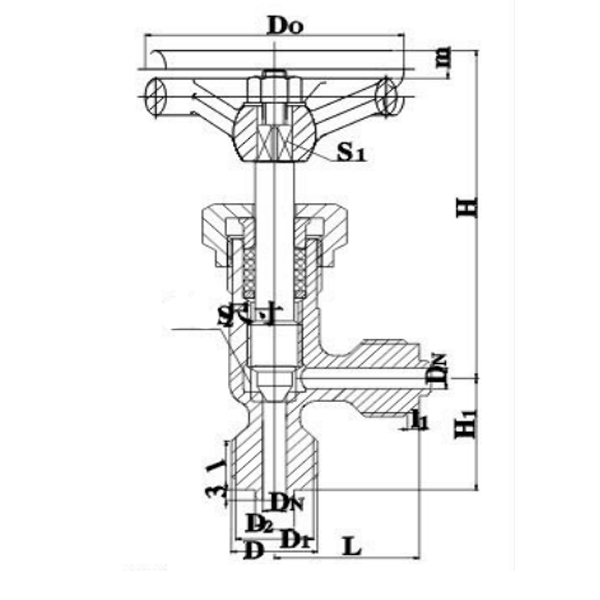

3. Dimensions
PN (MPa) | DN (mm) | L | H | H1 | D | D1 | D2 | I | I1 | S2 | Dₒ | S1 | m | kg |
4.0 | 15 | 73 | 220 | 75 | M56×2 | 53 | 38 | 28 | 6 | 65 | 160 | 1114 | 16 | 4.35 |
