| Quantity: 0 Pcs |
| Classic constructure:6*37+FC |
| Diameteruff1aas requirements. |
| Tensile Strength: as requirements. |
| Certificate: Third-party Inspection |
Detail:
Operation way：bending, hanging.
Classic constructure:6*37+FC
Diameter：as requirements.
Tensile Strength: as requirements.
Application: large-scale lifting, lashing, pulling, etc.
Surface: galvanized, bright, oiled, etc.
Specification:

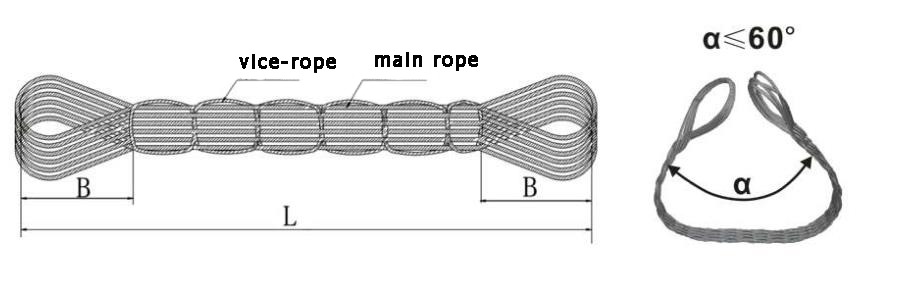

Drawing/sheet of flat wire rope mesh sling
139068.jpg "255 (1)139068.jpg")
(Note：If there are other requirements, it can be customized according to requirements.)
Type | Main rope size | Subordinate rope size | No.of main ropes | No.of soft eye B(mm) | Dimension of soft eye B(mm) | Working load(t) |
A1 | 6×37+FC-c12 | 6×37+FC-c6 | 4 | 2 | 250 | 6 |
A2 | 6×37+FC-c12 | 6×37+FC-c6 | 6 | 3 | 250 | 9 |
A3 | 6×37+FC-c12 | 6×37+FC-c6 | 8 | 4 | 250 | 12 |
A4 | 6×37+FC-c12 | 6×37+FC-c6 | 10 | 5 | 250 | 15 |
B1 | 6×37+FC-c14 | 6×37+FC-c8 | 4 | 2 | 280 | 8 |
B2 | 6×37+FC-c14 | 6×37+FC-c8 | 6 | 3 | 280 | 12 |
B3 | 6×37+FC-c14 | 6×37+FC-c8 | 8 | 4 | 280 | 16 |
B4 | 6×37+FC-c14 | 6×37+FC-c8 | 10 | 5 | 280 | 20 |
C1 | 6×37+FC-c16 | 6×37+FC-c10 | 4 | 2 | 350 | 10 |
C2 | 6×37+FC-c16 | 6×37+FC-c10 | 6 | 3 | 350 | 15 |
C3 | 6×37+FC-c16 | 6×37+FC-c10 | 8 | 4 | 350 | 20 |
C4 | 6×37+FC-c16 | 6×37+FC-c10 | 10 | 5 | 350 | 25 |
D1 | 6×37+FC-c18 | 6×37+FC-c12 | 4 | 2 | 380 | 13 |
D2 | 6×37+FC-c18 | 6×37+FC-c12 | 6 | 3 | 380 | 20 |
D3 | 6×37+FC-c18 | 6×37+FC-c12 | 8 | 4 | 380 | 25 |
D4 | 6×37+FC-c18 | 6×37+FC-c12 | 10 | 5 | 380 | 32 |
