| Material: Q235 |
| Type: Double bitt |
| Availible cert.: CCS, ABS, BV, DNV, LR and other certificates. |

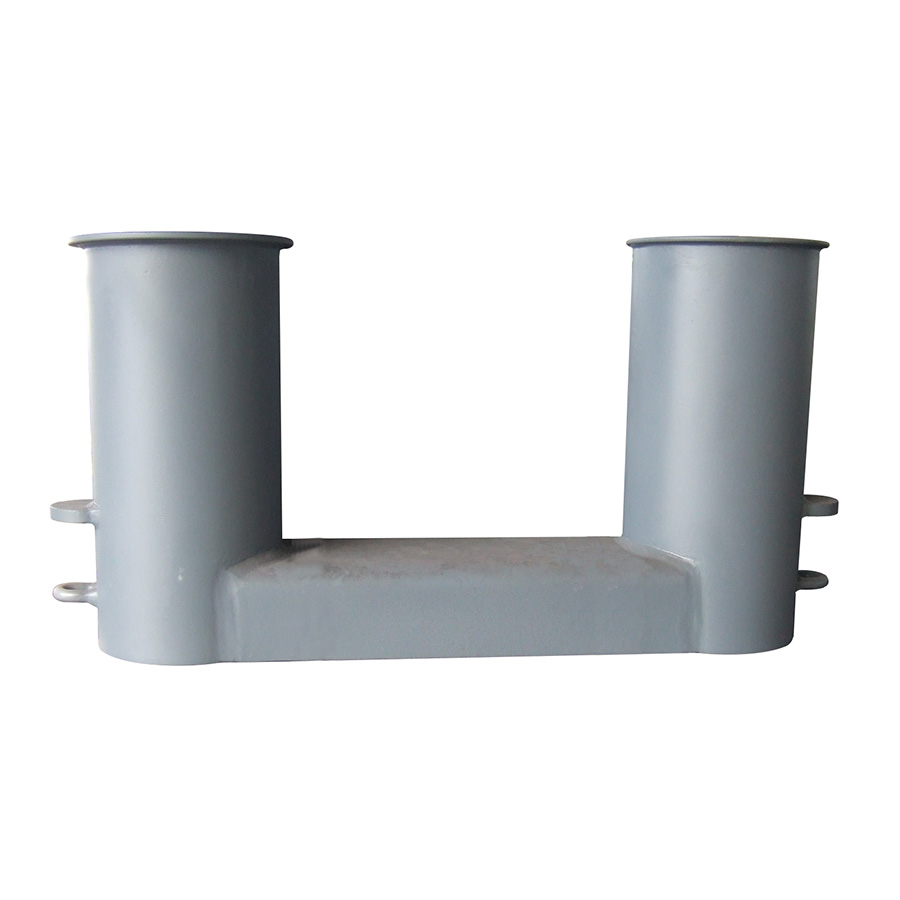

Double Bollard SWL 64T for Towing
Application：
ISO13795 welded steel bollard is a type of ship's mooring and towing fittings installed on broad to belay the mooring and towing rope. Type A with compact base plate, type B with wide base plate.

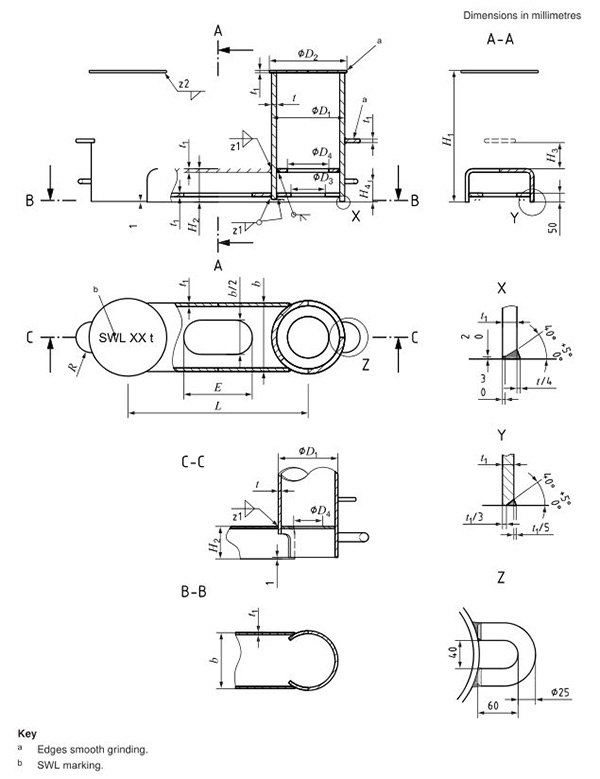

Drawings and Parameters of Double Bollard SWL 64T for Towing Type A:
Dimensions:
Nominal Size Dn | D1 | D2 | D3 | D4 | H1 | H2 | H3 | H4 | b | L | E | t | t1 | t2 | R |
400B | 406.4 | 430 | 190 | 250 | 730 | 185 | 145 | 115 | 380 | 1000 | 380 | 15.0 | 11 | 11 | 85 |
SWL:
Nominal Size
| Welding leg length | SWL | Calculated weight | ||||||
For mooring purposes (Figure-of-eight belay) | For towing purposes (eye splice) | ||||||||
Dn | z1 | z2 | One-rope use | Two-rope use | |||||
(kN) | (t) | (kN) | (t) | (kN) | (t) | (kg) | |||
400B | 8 | 5 | 326 | 33 | 269 | 27 | 3816 | 67 | 322 |

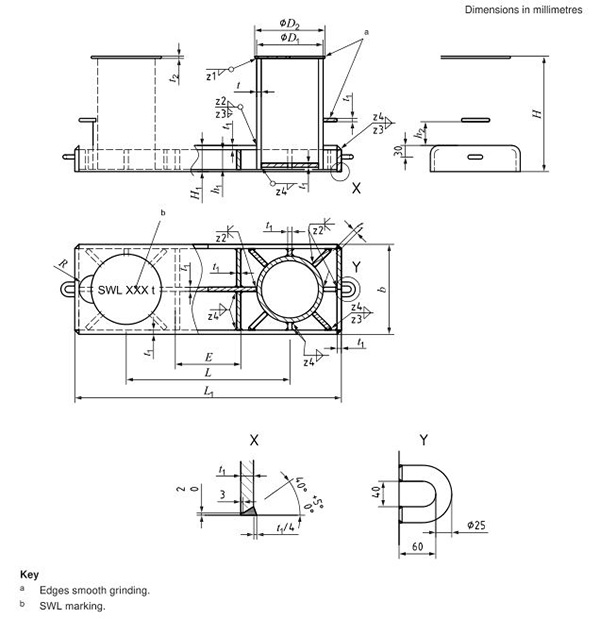

Drawings and Parameters of Double Bollard SWL 64T for Towing Type B:
Dimensions:
Nominal Size Dn | D1 | D2 | H1 | H2 | h1 | h2 | b | L | L1 | E | t | t1 | t2 | R |
400B | 406.4 | 430 | 705 | 160 | 133 | 145 | 550 | 1000 | 1630 | 400 | 15.0 | 13.5 | 11 | 85 |
SWL:
Nominal Size
| Welding leg length | SWL | Calculated weight | ||||||||
For mooring purposes (Figure-of-eight belay) | For towing purposes (eye splice) | ||||||||||
Dn | z1 | z2 | z3 | z4 | One-rope use | Two-rope use | |||||
(kN) | (t) | (kN) | (t) | (kN) | (t) | (kg) | |||||
400B | 5 | 5.5 | 8 | 7 | 326 | 33 | 269 | 27 | 4983 | 67 | 441 |
