DN700 Dredge Discharge Hose
  • DN700 Dredge Discharge Hose
DN700 Dredge Discharge Hose

DN700 Dredge Discharge Hose

Hose dia.: 700mm
Length: 1000mm-3000mm
Working pressure: 0.8-1.5 Mpa
Burst pressure: 4.5Mpa
Wall thickness: 40-45mm

DN700 Dredge Discharge Hose



Technical parameter

Hose dia.: 700mm

Length: 1000mm-3000mm

Working pressure(Mpa):  0.8-1.5 Mpa

Burst pressure: 4.5 Mpa

Wall thickness:  40-45mm

Working temperature: -20℃ to +50℃

DN

(mm)

Flange OD(mm)

Flange thickness(mm)

Bolt hole

Length(mm)

Working pressure(Mpa)

Burst pressure

(Mpa)

Wall thickness(mm)

P.C.D.

(mm)

No.

Hole dia.(mm)

700±3

910±3

25±2

840±1

24

27±1

1000-3000

0.8-1.5

4.5

40-45

NOTE:The specifications for reference,the dredge discharge hoses can be customized according to client’s requests.

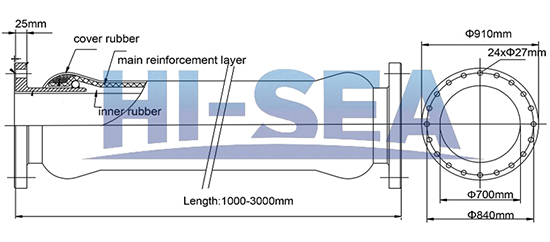

Drawing of DN700 Dredge Discharge Hose

DN700 Dredge Discharge Hose Drawing.jpg
