DIN81907 Warping Roller with Pedestal

Standard: DIN81907

Type: Warping Roller

Availible cert.: CCS, ABS, BV, DNV, LR and other certificates.

Contact Now

Download Product Catalog

Product Description

Send your message to this supplier

DIN81907 Warping Roller with Pedestal

Introduction:

There are two types of fairleads specified in the DIN 81907 standard. Type A is a cylindrical base and Type B is a conical base. If you want more information, please contact us.

Since the establishment of the company, we have established good business relationships with customers all over the world. We can customize products according to customers' drawings, and sometimes we will make professional suggestions according to customers' usage scenarios and conditions.

We can also provide many types of marine equipments. If you want more informations about our products, please contact us by sending an email or make us a phone call.

Drawings and Parameters of DIN81907 Warping Roller with Pedestal Type A:

Type	h	H	TUBE (DxS)	D1	C	Weight(kg)
1	200	282	219.1X12.5	255	60	31
	400	482				44
	600	682				57
	800	882				70
2	200	305	273X12.5	310		43
	400	505				59
	600	705				75
	800	905				91
3	200	329	355.6X12.5	395		68
	400	529				89
	600	729				111
	800	929				132
5	200	363	457X12.5	495		117
	400	563				144
	600	763				172
	800	963				199
8	200	411	559X12.5	595	80	209
	400	611				242
	600	811				276
	800	1011				310
12	200	459	660X14.2	705		325
	400	659				370
	600	859				415
	800	1059				460
20	200	483	660X17.5		100	460
	400	683				516
	600	883				571
32	200	553	813X16	865		748
	400	753				810
	600	953				873

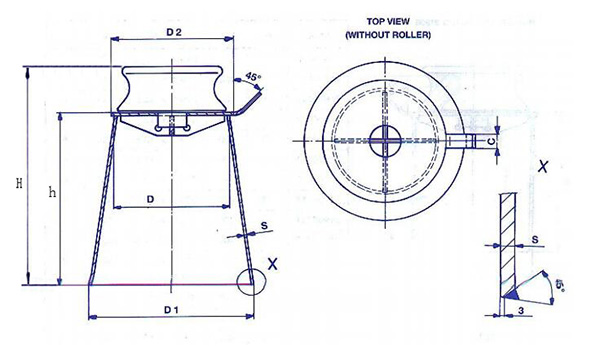

Drawings and Parameters of DIN81907 Warping Roller with Pedestal Type B:

Type	h	H	D	D1	S	D2	C	Weight (kg)
8	1000	1211	560	825	15	595	80	426
12	1000	1259	660	925		705		568
12	1200	1459		975				638
20	800	1083		870			100	629
	1000	1283		925				695
	1200	1483		975				764
	1400	1683		1030				838
32	800	1153	810	1020		865		953
	1000	1353		1075				1030
	1200	1553		1125				1110
	1400	1753		1180				1196
