| Quantity: 0 Pieces |
| Size: DN50 |
| Pressure: 0.5 MPa |
| Body Material: Cast Iron |
| Type: AJ |
Available medium: Oilpulsation water.
DN(AJ): 50 ~ 150mm
DN(BJ): 50 ~ 200mm
Type: AJ and BJ
Materials of main Parts
(1). Body: Cast Iron;
(2). Cover: Cast Iron;
(3). Disc: Cast Tin Bronze;
(4). Steam: Cast Tin Bronze

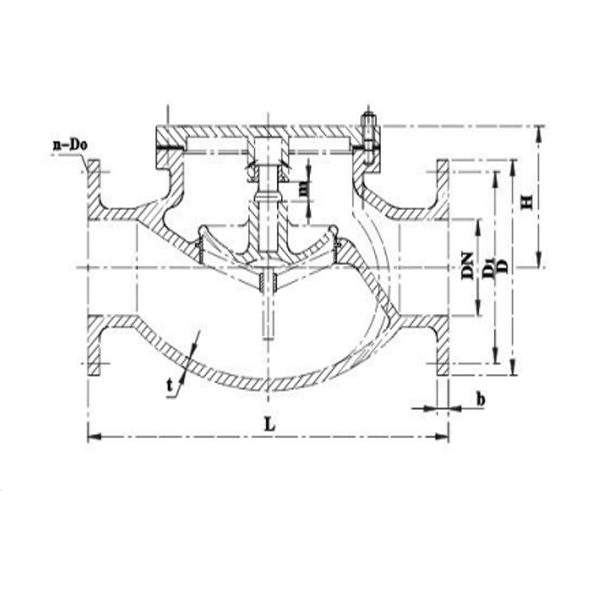

6. Dimensions
DN | L | H | t | D | D1 | Dₒ | b | n | Th | m | kg |
50 | 210 | 100 | 8 | 130 | 105 | 15 | 16 | 4 | M12 | 15 | 9.5 |
