Standard: CB/T 3672-2016
Type: Pawl type
Suitable chain size: 76mm
Availible cert.: CCS, ABS, BV, DNV, LR and other certificates.

CBT3672-2016 Single Point Mooring Chain Stopper

CBT3672-2016 Single Point Mooring Chain Stopper 1.jpg

Introduction:

    The single point mooring chain stopper specified in the standard CBT3672-2016 is suitable for oil tankers, Chemical tanker, liquefied gas tanker, etc. The surface of all castings of the single point mooring chain stopper should be smooth to prevent excessive wear of the chain links. In addition, the movable parts need to be coated with lubricating grease, and the remaining parts should be covered with paint after spraying with anti-rust primer. The single point mooring chain stopper must undergo strict quality inspection before leaving the factory. The welding of each part must meet the requirements of the classification society. Only after passing the inspection can a certificate of conformity be issued. A qualified single point mooring chain stopper shall have the following marks:

1. The name or mark of the manufacturer;

2. Model and standard number;

3. Production batch number and production year and month;

4. Safe working load;

5. Inspect the qualified seal.


Drawings and Parameters of CBT3672-2016 Single Point Mooring Chain Stopper Type A:

CBT3672-2016 Single Point Mooring Chain Stopper Type A.jpg

Anchor

Chain

Diameter

(mm)

SWL

(t)

D

D1

H

b

f

T

Weight

(kg)

76

200

116

220

890

21

28

28

1453

76

250

140

260

910

24

32

32

1723

76

350

180

330

950

30

40

40

2130

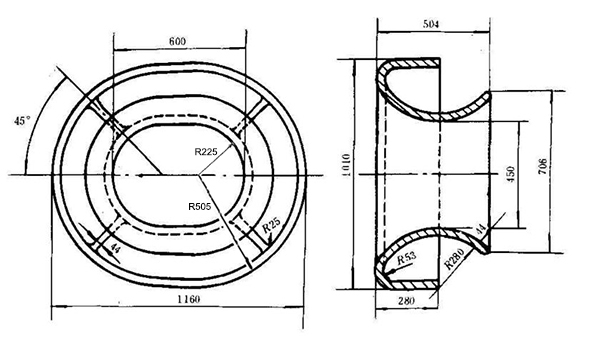

Drawings of CBT3672-2016 Single Point Mooring Chock for Chain Stopper:

CBT3672-2016 Single Point Mooring Chock for Chain Stopper.jpg
