CBT3656 Pressure Reducing Valve
  • CBT3656 Pressure Reducing Valve
CBT3656 Pressure Reducing Valve

CBT3656 Pressure Reducing Valve

Quantity: 0 Pieces
Size: DN20 DN25
Pressure: 3.0MPa
Body Material: Cast Silicon Brass
Type: A
  1. Available Medium: Air

  2. Materials of Main Parts

(1). Body: Cast silicon brass;

(2). Cover: Cast steel

   3. Dimensions

DN1

Dn2

L

H

h

D1



D2

D3

L1

L2

  D3

D4

D5

L3

L4

kg

20

25

229

395

121

M39×2

36

25

23

5

M48×2

45

32

26

6

22.3

CBT3656 Pressure Reducing Valve .jpg

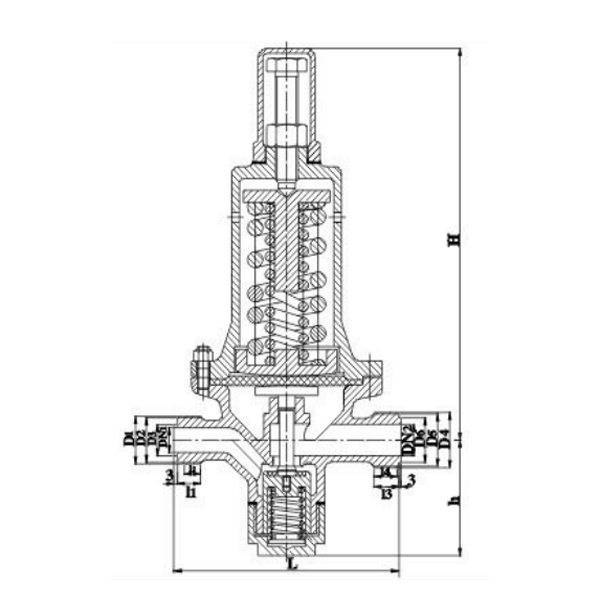

    3. Drawing

CBT3656 Bronze Pressure Reducing Valve.jpg
