CB T711-95 Spek Anchor 3540kgs
CB T711-95 Spek Anchor 3540kgs

CB T711-95 Spek Anchor 3540kgs

Quantity: 0 pieces
Nominal weight: 3540kgs
Material: ZG200-400C
Holding power: Normal holding power
Surface treatment: Bituminous paint

CB T711-95 Spek Anchor 3540kgs

CB T711-95 Spek Anchor 3540kgs 1.jpg

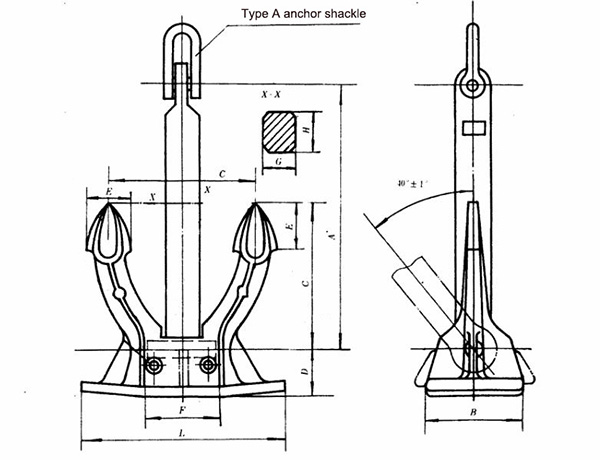

Drawings and Parameters of CB T711-95 Spek Anchor 3540kgs:

CB T711-95 Spek Anchor 3540kgs 3.JPG

Nominal Weight

(kg)

A

(mm)

C

(mm)

D

(mm)

L

(mm)

E

(mm)

B

(mm)

F

(mm)

G

(mm)

H

(mm)

Anchor Shackle

(GB/T 547)

3540

2350

1200

360

1650

38

834

520

228

276

a18


Pictures of CB T711-95 Spek Anchor:

CB T711-95 Spek Anchor 4.jpg
