Bulwark-Mounted Chock SWL 90T
Bulwark-Mounted Chock SWL 90T

Bulwark-Mounted Chock SWL 90T

Material: ZG230-450
Standard: ISO13729
Type: Bulwark-Mounted
Surface: Zinc rich primer
Availible cert.: CCS, ABS, BV, DNV, LR and other certificates.

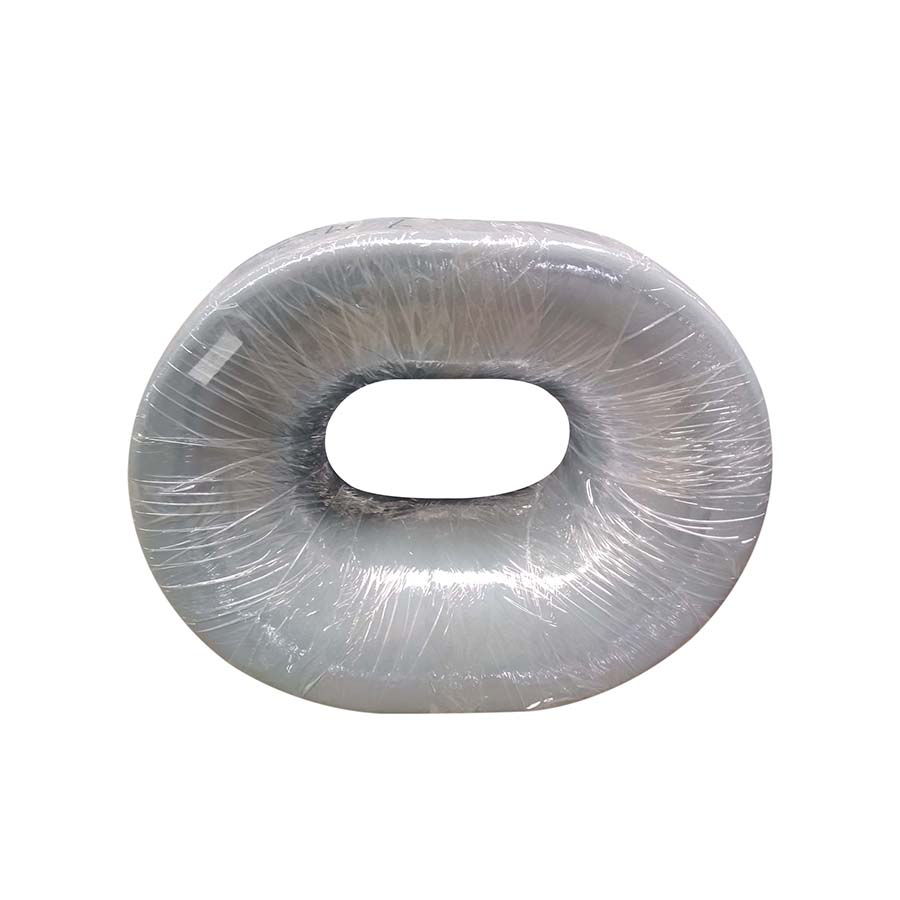

Bulwark-Mounted Chock SWL 90T

Bulwark-Mounted Chock SWL 90T 1.jpg

Introduction:

   The closed chock is a common ship device installed on the ship to guide the movement of the ropes. In the ISO 13729-2012 standard, there are two types of closed chocks: A type and B type. Type A is installed on the deck and type B is installed on the bulwark.

Drawings and Parameters of Bulwark-Mounted Chock SWL 90T:

Bulwark-Mounted Chock SWL 90T 3.jpg

Form 1-1:

Nominal

size

L*H*D

 l1

l2

H1

H2

R

R1

R2

R3

R4

R5

 400×250×428

882

778

732

515

125

366

257.5

216

194

250

Form 1-2:

Nominal

size

L*H*D

R6

d1

d2

T

 θ

Welding

leg

length



SWL

Wire

Rope

Diameter

(recommended)

 Calculated

Weight

(kg)

z1

z2

KN

t

 400×250×428

228

216

120

22

56°

10

9

883

90

36

264
