| Quantity: 0 Pcs |
| Diameter:60/120/160 mm(as requirements). |
| Surface: as requirements |
| Breaking load:1570,1670,1770,1870,1960 Mpa |
Detail:
Certificate：ABS，LR，CE，CCS，BV，DNV
Standard：GB8919，GB/T 20067, ISO, ASTM, EN, JIS, etc.

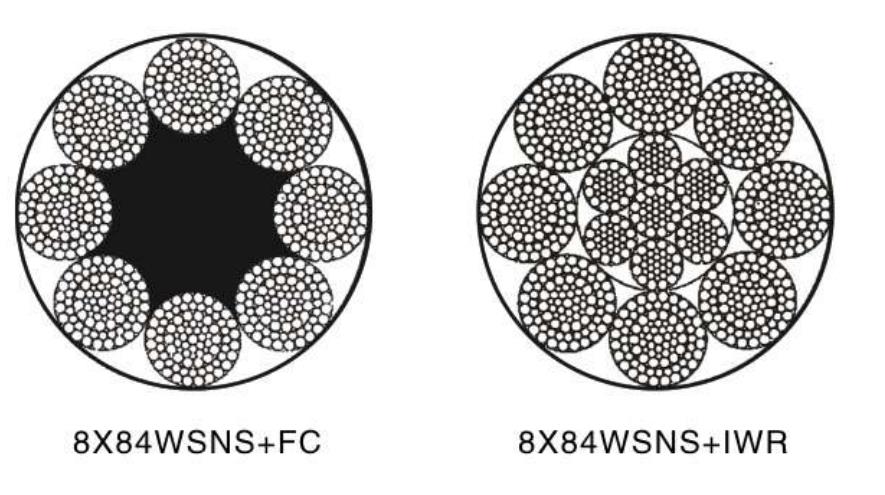

Common construction：8×84WSNS+FC,8×84WSNS+IER
Diameter:60-190 mm(as requirements)
Breaking load:1570,1670,1770,1870,1960 Mpa
Surface treatment: as requirements.
Application: drilling lifting, ship building, cranes, hoisting, marine engineering, aerial cableway, etc.
Specification:
Note：If there are other requirements, it can be customized according to requirements.)
Rope dia.(mm) | Approx.weight (kg/100m) | Nominal tensile strength grade of rope(MPa) | ||||||||||
1570 | 1670 | 1770 | 1870 | 1960 | ||||||||
Minimum breaking load of rope(kN) | ||||||||||||
D | FC | IWR | FC | IWR | FC | IWR | FC | IWR | FC | IWR | FC | IWR |
60 | 1330 | 1590 | 1530 | 1900 | 1620 | 2020 | 1720 | 2140 | 1820 | 2260 | 1910 | 2370 |
120 | 5330 | 6380 | 6100 | 7600 | 6490 | 8080 | 6880 | 8560 | 7270 | 9050 | 7620 | 9480 |
160 | 9470 | 11300 | 10900 | 13500 | 11500 | 14400 | 12200 | 15200 | 12900 | 16100 | 13500 | 16900 |
Minimum aggregate breaking force of wire ＝Minimum aggregate breaking force of rope×1.28(fiber core)or×1.398(steel core) | ||||||||||||
