Quantity: 0 Pcs |
Diameter:22/24/26 mm(as requirements). |
Detail:
Certificate:ABS,LR,CE,CCS,BV,DNV
Standard:GB8919,GB/T 20067, ISO, ASTM, EN, JIS, etc.

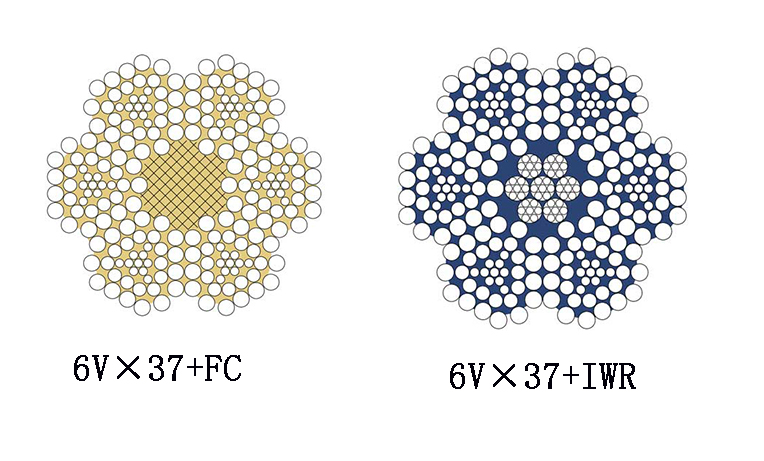

Common construction: 6V×37+FC, 6V×37+IWR
Application: shaft lifting, blast furnace hoisting, outside slope winch, large casting crane, cableway load-bearing, etc.
Specification:
Parameter of 6V×37:
(Note:If there are other requirements, it can be customized according to requirements.)
Nominal Diameter mm | Approx.weight (kg/100m) | Nominal Strength Mpa | ||||
Natural Fiber core | Synthetic Fiber core | 1570 | 1670 | 1770 | 1870 | |
Min.Breaking Load KN | ||||||
22 | 196 | 192 | 274 | 291 | 308 | 326 |
24 | 233 | 229 | 326 | 346 | 367 | 388 |
26 | 274 | 268 | 382 | 406 | 431 | 455 |
Note:The total Min.breaking load=Min. breaking load×1.287 |
