| Common construction: 6*7 |
| Quantity: 0 Pcs |
| Diameter: (14/16/18 mm)as requirements. |
Detail:
Certificate：ABS，LR，CE，CCS，BV，DNV
Standard：GB8919，GB/T 20067, ISO, ASTM, EN, JIS, etc.

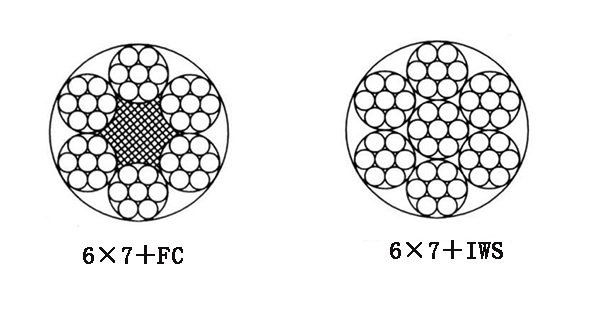

Common construction: 6×7
Specification：
Parameter of 6×7 steel wire rope:
(Note：If there are other requirements, it can be customized according to requirements.)
Nominal Diameter mm | Approx.weight (kg/100m) | Nominal Strength Mpa | ||||
Natural Fiber core | Synthetic Fiber core | 1570 | 1670 | 1770 | 1870 | |
Min.Breaking Load KN | ||||||
14 | 68.8 | 67.4 | 102 | 109 | 115 | 122 |
16 | 89.9 | 88.1 | 133 | 142 | 150 | 159 |
18 | 114 | 111 | 169 | 180 | 190 | 201 |
Note：The total Min.breaking load＝Min. breaking load×1.134 | ||||||
