Quantity: 0 Pcs |
Diameter:as requirements. |
Material:316 stainless steel |
Common construction: 637-FC/637-IWR |
Detail:
Finish: bright
Material:316 stainless steel
Diameter: 0.18mm-60mm

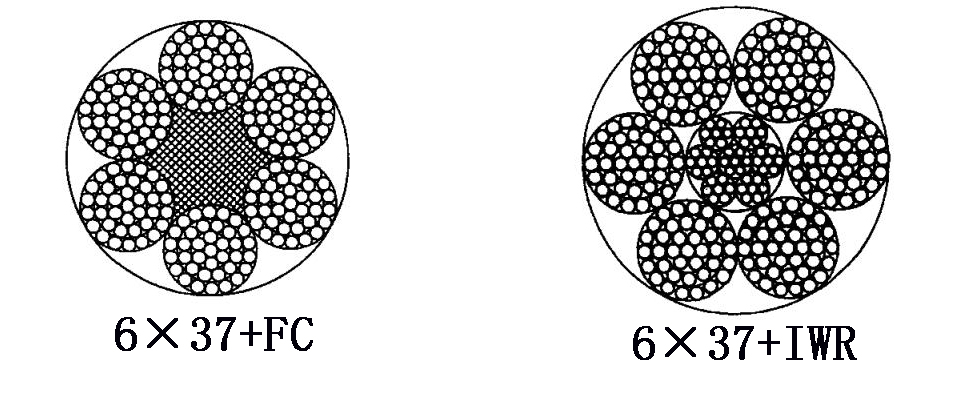

Common construction: 6×37+FC,6×37+IWR
Certificate:ABS,LR,CE,CCS,BV,DNV
Standard:GB8919,GB/T 20067, ISO, ASTM, EN, JIS, etc.
Usage: pulling, lifting and transportation
Specification:
parameter of 6×37 316 stainless steel wire rope :
(Note:If there are other requirements, it can be customized according to requirements.)
Rope dia. (mm) | Approx.weight (kg/100m) | Nominal tensile strength grade of rope(MPa) | |||||||||
1570 | 1670 | 1770 | 1870 | ||||||||
Minimum breaking load of rope(kN) | |||||||||||
NFC | SFC | IWR | FC | IWR | FC | IWR | FC | IWR | FC | IWR | |
20 | 138 | 135 | 160 | 185 | 200 | 197 | 213 | 209 | 226 | 221 | 239 |
30 | 311 | 303 | 360 | 417 | 451 | 443 | 479 | 470 | 508 | 496 | 537 |
40 | 554 | 539 | 640 | 741 | 801 | 788 | 852 | 835 | 903 | 883 | 954 |
