| Quantity: 0 pcs |
| Material: Steel |
| TDS: 500mg/L |
| Work Pressure: 6.5MPa |
| Certificate: BV |
5T RO Seawater Desalination System
The seawater desalination plant is accommodate to the seawater which average salinity is less than 35000ppm. The produced water is in accordance with your requirement when among this scale of seawater salinity. Quality of produced water meets National Drinking Water Standards.
Technical Specifications
| Capacity | 5m3/day |
| Raw water | ≤35000PPM |
| Inlet temperature | 5~35℃ |
| PH value of Raw Water | 3.0~10.0 |
| Boosting inlet pressure | 0.1~1kg/cm2 |
| Salt content of product water | ≤500PPM |
| Desalination rate | ≥98.5% |
| Product water pressure | ≤0.3Mpa |
| Recovery | ≈28% |
| Power supply | 380VAC/50HZ/3φ |
| Power consumption | ≈2.75KW（Include boost pump） |
| Control cabinet | 220VAC |
| Control voltage | 220VAC |
| IP | IP55 |
| L×W×H | 1080×440×1600mm |
| Weight | ≈280kg |

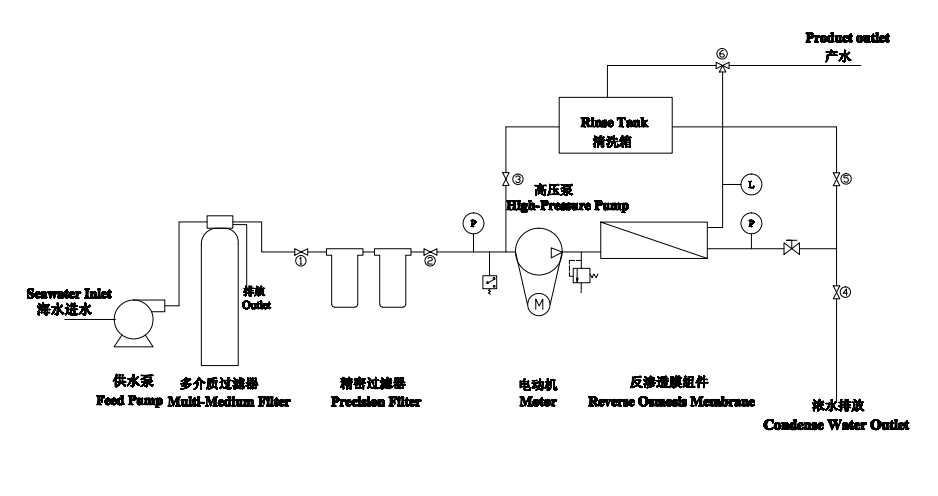

Process
