| Quantity: 0 pcs |
| Material: Steel |
| Outlet Press: 0.4-0.6Mpa |
| Outlet Viscosity: 10-12cst |
| Certificate: LR |
3m³ Marine Diesel Fuel Oil Supply Plant
The semiautomatic fuel oil supply unit is composed of oil supply pumps, circulating pumps, flowmeter, mixing tank, primary duel filter, semiautomatic cleaning filter, fuel oil heater, fuel oil viscosity control system, PLC electric controller, instruments, valves, attachments, and so on.
Technical Specifications
| Flow rate m³/h | Outlet pressure | Outlet Viscosity | Steam Press | Steam presure | Outline Dimension L*B*H | Weight Kg | M/E Power 1000Kw |
| 3 | 0.4~0.6MPa | 10~12cst | 0.7MPa | 0.7MPa | 1850*950*1900 | 2680 | 6~7 |

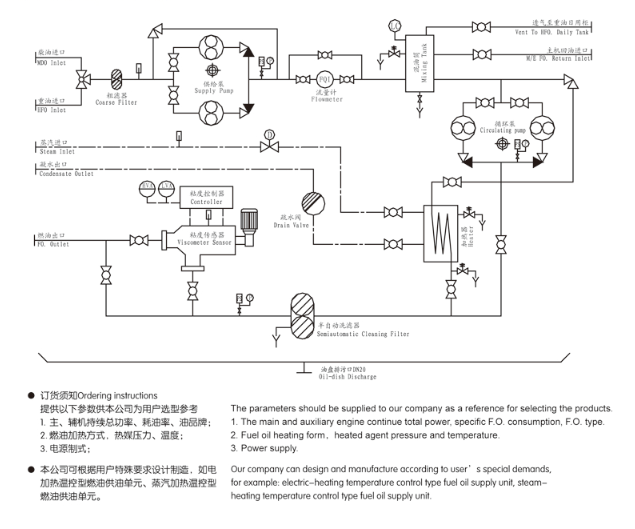

System Principle
