32mm Electric Combined Windlass

32mm Electric Combined Windlass

1. (AM2)chain dia: 32mm

2. Anchor depth: ≤82 5 m

3. Working laod: 45 kN

4. Over load: 68 kN

5. Support load: 262 kN

6. Normal speed: 9 m/min

7. Drum load: 30 kN

8. Normal speed: 12 m/min

9. Durm support load: 90 kN

10. Wire Diameter: 22 mm

11. Capacity: 140 m

12. Pull of warping end: 20 KN

12. ELe model：

              Model: JZ2-H41-4/16（带加热器）

              Power: 12/3 5 kW

              Speed: 1370/320 r/min

              Voltage: 380V（50HZ）

              Duty: 30/10 min

              Protection level: IP56

              Insulation level: F

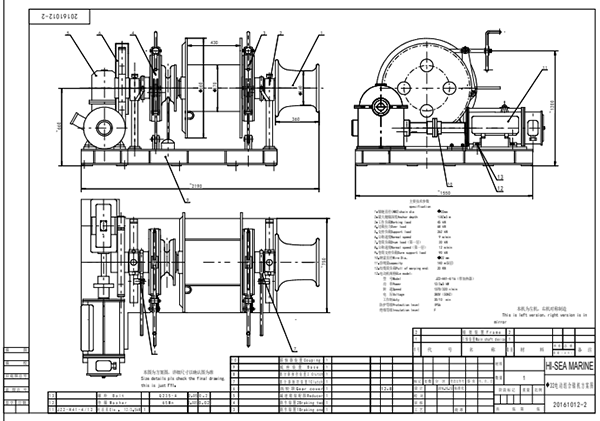

Drawing of 32mm Electric Combined Windlass
